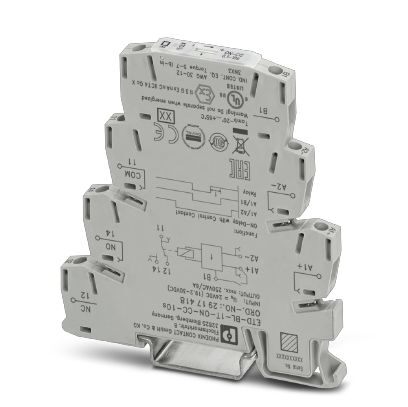

Phoenix Contact ETDBL1TONCC10S Timer Relay with Control Contact
The PHOENIX CONTACT ETD-BL-1T-ON-CC- 10S is a compact timer relay ideal for controlling time sequences in industrial applications. Its narrow 6.2 mm design width and labeled, illuminated thumbwheel allow for precise and easy time setting. The recessed thumbwheel protects against accidental modification, while the use of a screwdriver (2.5 mm blade width) ensures secure adjustments. This relay is suitable for various applications requiring time delays and control contact functionality, offering reliable performance in a compact form factor.
Phoenix Contact ETDBL1TONCC10S Timer Relay with Control Contact Specifications:
- width: 6.2 mm
- height: 80 mm
- depth: 86 mm
- ambient_temperature_operation: -20 °C ... 65 °C
- ambient_temperature_storage: -25 °C ... 80 °C
- ambient_humidity_operation: 15 % ... 85 %
- noise_immunity: EN 61000-6-2
- input_voltage_range: 24 V DC (19,2 V DC ...30 V DC)
- function: ON-CC: With switch-on delay with control contact
- time_setting_range: 0.1 s ... 10 s
- contact_type: 1 floating PDT
- output_fuse: 6.3 A (fast-blow)
- mechanical_service_life: Approx. 2 x 10^7 cycles
- mounting_position: any
- housing_insulation_material: Polyamide PA, self-extinguishing
- rated_insulation_voltage: 300 V AC (According to EN 50178)
- conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL_USA_Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- conductor_cross_section_flexible_min: 0.14 mm²
- conductor_cross_section_flexible_max: 2.5 mm²
- conductor_cross_section_solid_min: 0.14 mm²
- conductor_cross_section_solid_max: 2.5 mm²
- conductor_cross_section_AWG_min: 30
- conductor_cross_section_AWG_max: 12
- stripping_length: 8 mm
- connection_method: Screw connection
- control_pulse_length: min. 50 ms
- noise_emission: EN 61000-6-4
- flammability_rating_UL94: V0
- low_voltage_directive: Conformance with LV directive 2006/95/EC
- packing_unit: 1 pc
- weight_per_piece: 60.0 g
- custom_tariff_number: 85364190
- country_of_origin: Germany
- eCl@ss_4.0: 27371103
- eCl@ss_4.1: 27371103
- eCl@ss_5.0: 27371701
- eCl@ss_5.1: 27371701
- eCl@ss_6.0: 27371790
- eCl@ss_7.0: 27371790
- eCl@ss_8.0: 27371605
- eCl@ss_9.0: 27371605
- ETIM_2.0: EC001439
- ETIM_3.0: EC001439
- ETIM_4.0: EC001439
- ETIM_5.0: EC001439
- UNSPSC_6.01: 30211920
- UNSPSC_7.0901: 39121519
- UNSPSC_11: 39121519
- UNSPSC_12.01: 39121519
- UNSPSC_13.2: 39121519
