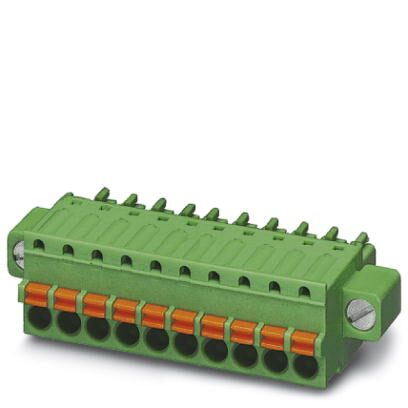

Phoenix Contact FKMCP1512STF381 PCB Connector
The PHOENIX CONTACT FK-MCP 1,5/12-STF-3,81 is a robust and reliable PCB connector designed for efficient and secure connections in a variety of industrial applications. Its push-in spring connection simplifies installation, eliminating the need for tools. The connector's defined contact force ensures long-term stability, while the color-coded actuation lever enhances usability. A screwable flange provides superior mechanical stability, and an integrated test option allows for quick and convenient testing. This connector is ideal for applications requiring a compact and dependable connection solution.
Phoenix Contact FKMCP1512STF381 PCB Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4017918110062
- Weight per Piece (excluding packing): 12.200 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length [ l ]: 20.8 mm
- Width [ w ]: 56.11 mm
- Height [ h ]: 12.4 mm
- Pitch: 3.81 mm
- Dimension a: 41.91 mm
- Range of articles: FK-MCP 1,5/..-STF
- Number of positions: 12
- Connection method: Push-in spring connection
- Insulating material group: I
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 160 V
- Rated voltage (III/2): 160 V
- Rated voltage (II/2): 320 V
- Connection in acc. with standard: EN-VDE
- Nominal current IN: 8 A
- Nominal cross section: 1.5 mm²
- Maximum load current: 8 A (with 1.5 mm² conductor cross section)
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A1
- Stripping length: 9 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.75 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 16
- Minimum AWG according to UL/CUL: 28
- Maximum AWG according to UL/CUL: 16
- Recommended crimping pliers: 1212034 CRIMPFOX 6
- Ferrules without insulating collar, according to DIN 46228-1: Cross section: 0.25 mm²; Length: 7 mm
- Ferrules: Cross section: 0.34 mm²; Length: 7 mm; Cross section: 0.5 mm²; Length: 8 mm ... 10 mm; Cross section: 0.75 mm²; Length: 8 mm ... 10 mm; Cross section: 1 mm²; Length: 8 mm ... 10 mm; Cross section: 1.5 mm²; Length: 10 mm
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Standards and Regulations: EN-VDE, CSA, EAC, cULus Recognized
