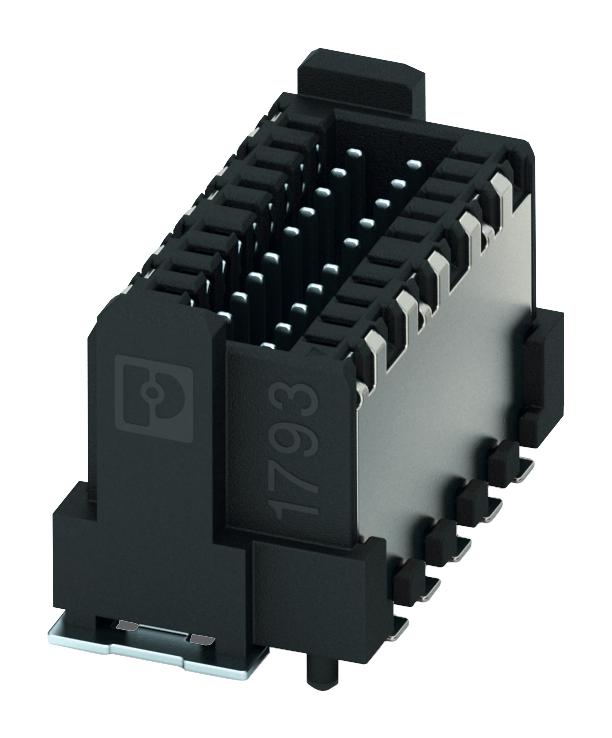

Phoenix Contact FP0820MVSH265 High-Density PCB Connector
The FINEPITCH series offers high-density, reliable board-to-board connectors with options for shielded and unshielded variants in 0.8 mm and 1.27 mm pitches. Designed for flexible PCB configurations, including coplanar, mezzanine, and stacked arrangements, these connectors support high-speed data transmission up to 16 Gbps. They feature hermaphroditic, double-sided contacts with ScaleX technology, providing excellent vibrations resistance, EMC shielding, and compatibility with automated soldering processes. Suitable for industrial automation, signal and data transmission, their robust construction ensures durability for demanding applications.
Phoenix Contact FP0820MVSH265 High-Density PCB Connector Specifications:
- Pitch: 0.8 mm and 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm (0.8mm series), 0.4 mm (1.27mm series)
- Temperature range: -55°C to +125°C
- Service life: 500 insertion cycles
- Data transmission: Up to 16 Gbps
- EMC properties: Shielded versions provide excellent electromagnetic compatibility
- Contact system: Hermaphroditic, ScaleX double contact
- Housing: Designed for high tolerance and robust connection
- Assembly: Tape-on-reel, compatible with automated SMT processing
- Approval: UL 1977
- Materials: Cu alloy, Ni/Au/Sn surfaces
- Flammability: UL 94 VO
Buy the Buy Phoenix Contact FINEPITCH FP0820MVSH265 Online
Secure your device connections with Phoenix Contact's FINEPITCH high-density PCB connectors, offering robust, vibration-proof, and shielded solutions for demanding automation applications. Designed for high-speed data transfer up to 16 Gbps, these connectors support flexible PCB arrangements, including coplanar, mezzanine, and stack configurations. With advanced ScaleX hermaphroditic contact technology and reliable soldering features, they ensure durable, interference-free operation. Purchase online today for fast delivery and seamless integration into your industrial automation and electronic projects.
Buy Phoenix Contact FP0820MVSH265 now and experience unmatched reliability and high-speed data transmission with excellent EMC protection.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0820MVSH265?
You can click on the BUY or RFQ button to purchase FP0820MVSH265 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0820MVSH265?
You can download the FP0820MVSH265 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0820MVSH265?
Phoenix Contact
