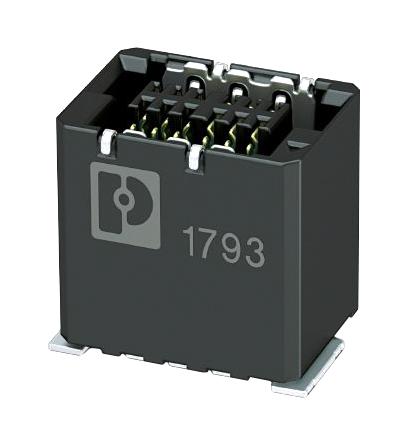

Phoenix Contact FP0852FVSH785 PCB Connectors
The FINEPITCH series board-to-board connectors by Phoenix Contact offer high-density, flexible signal and data transmission solutions with optional shielding for excellent EMC performance. Available in 0.8 mm and 1.27 mm pitches, these connectors support stack heights from 6 mm to 13.8 mm, ensuring robust, vibration-resistant, and reliable connections suitable for high-speed data rates up to 16 Gbps. Features include hermaphroditic contact systems, process-compatible packaging, and excellent tolerance compensation for precise PCB integration. Master versatile device design with these durable, automated-solder-ready connectors designed for industrial and automation applications.
Phoenix Contact FP0852FVSH785 PCB Connectors Specifications:
- Pitch: 0.8 mm or 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C (varies with position number)
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm for 0.8 mm pitch, Min. 0.4 mm for 1.27 mm pitch
- Operating temperature: -55°C to +125°C
- Durability: 500 mating cycles
- Data transmission: Up to 16 Gbps
- Shielded versions offer EMC protection, shield transition points, and excellent interference discharge
- Material: Cu alloy, LCP insulation, Sn, Ni, Au finishes
- Approval: UL 1977
- Process: SMD soldering, tape-on-reel packaging, compatible with automated AOI inspection
Buy the Buy Phoenix Contact Data & Signal PCB Connectors Part Number FP0852FVSH785 Online
Order Phoenix Contact FP0852FVSH785 high-density PCB connectors online today. These reliable, shielded and unshielded connectors support data rates up to 16 Gbps, ensuring optimal performance in automated systems. Designed for customizable device integration, with features including superior EMC shielding, hermaphroditic contact system, and compatibility with SMT processes. Ideal for industrial automation, energy, and communication applications, they promise long-lasting durability, easy installation, and maximum flexibility—make your purchase now and enhance your device design with premium connectors.
Get Phoenix Contact FP0852FVSH785 today—designed for high-speed data transmission, robust PCB connections, and reliable performance in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0852FVSH785?
You can click on the BUY or RFQ button to purchase FP0852FVSH785 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0852FVSH785?
You can download the FP0852FVSH785 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0852FVSH785?
Phoenix Contact
