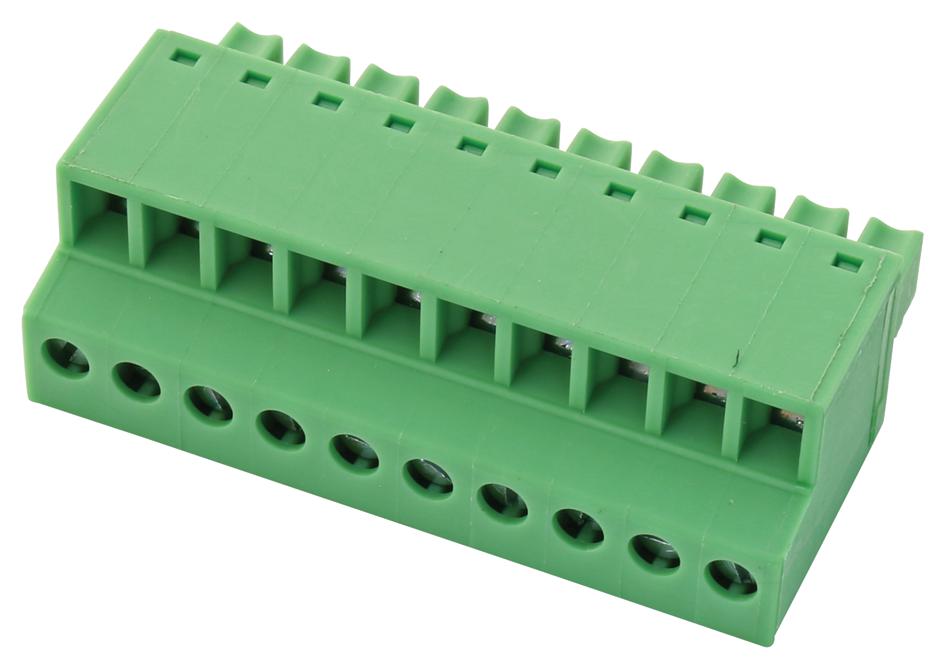

Phoenix Contact FRONTMC1510ST381 PCB connector
The FRONT-MC 1.5/10-ST-3.81 printed-circuit board connector by Phoenix Contact offers a reliable, compact connection solution for industrial automation. With 10 positions, a pitch of 3.81 mm, and a maximum current of 8 A, it features a front screw connection for ease of installation. The connector's tin contact surface, UL 94V-0 flammability rating, and wave soldering mounting option ensure durability and safety in demanding environments. Suitable for various industrial applications requiring secure, high-quality PCB connections, this connector is ideal for automation, control systems, and electronic equipment.
Phoenix Contact FRONTMC1510ST381 PCB connector Specifications:
- Number of positions: 10
- Pitch: 3.81 mm
- Rated voltage: 160 V (III/2), 320 V (II/2)
- Rated current: 8 A
- Contact surface: Tin
- Insulating material: PA (Polyamide)
- Flammability rating: UL 94V-0
- Connection method: Front screw connection
- Screw thread: M2
- Tightening torque: 0.22 to 0.25 Nm
- Conductor cross section: solid 0.14-1.5 mm², AWG 28-16; flexible 0.14-1.5 mm², AWG 28-16
- Mounting: Wave soldering, press-in technology
- Dimensional: Length 21.7 mm, width 38.89 mm, height 12.3 mm
- Environmental: RoHS compliant, EAC, UL, cULus recognized
- Approved standards: EN-VDE, CSA, VDE
Buy the Phoenix Contact FRONT-MC 1.5/10-ST-3.81 – Reliable PCB Connector for Industrial Applications
Purchase the Phoenix Contact FRONT-MC 1.5/10-ST-3.81 today to ensure secure and reliable PCB connections in your industrial automation projects. This 10-position connector with a 3.81 mm pitch offers high performance, easy front screw connection, and robust tin contacts for durability. Suitable for electronic control systems, automation, and industrial control panels, it is RoHS compliant and recognized by UL and VDE standards. Order online now for quick delivery and seamless installation in your manufacturing and control applications.
Get Phoenix Contact FRONT-MC 1.5/10-ST-3.81 today—designed for reliable PCB connections, easy installation, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact FRONTMC1510ST381?
You can click on the BUY or RFQ button to purchase FRONTMC1510ST381 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FRONTMC1510ST381?
You can download the FRONTMC1510ST381 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FRONTMC1510ST381?
Phoenix Contact
