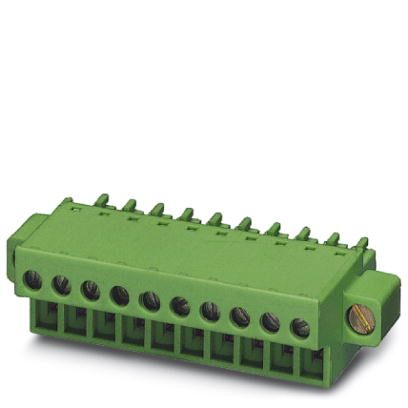

Phoenix Contact FRONTMC154STF381 Printed Circuit Board Connector
The PHOENIX CONTACT FRONT-MC 1,5/ 4-STF-3,81 is a robust and reliable printed circuit board connector designed for secure and efficient connections. This connector features a front screw connection mechanism, ensuring a tight and dependable bond. With a 3.81mm pitch and a nominal current of 8A, it's suitable for a wide range of industrial applications, including power supplies, automation systems, and control panels. The generously dimensioned wiring space simplifies the connection process, reducing the risk of errors and improving overall assembly efficiency. Individual position coding is possible, enhancing circuit integrity and preventing mismatches. Its V0 flammability rating ensures safety and compliance with industry standards.
Phoenix Contact FRONTMC154STF381 Printed Circuit Board Connector Specifications:
- Nominal current: 8 A
- Rated voltage (III/2): 160 V
- Number of positions: 4
- Pitch: 3.81 mm
- Connection method: Front screw connection
- Color: green
- Contact surface: Tin
- Wiring space: Generously dimensioned
- Screwdriver axis: Parallel to the conductor axis
- Position coding: Individual coding by removing the coding tab
- Packing unit: 1 pc
- Weight per Piece: 6.32 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Width: 25.63 mm
- Dimension a: 11.43 mm
- Insulating material group: I
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 160 V
- Rated voltage (II/2): 320 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 1.5 mm²
- Maximum load current: 8 A (with 1.5 mm² conductor cross section)
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A1
- Stripping length: 9 mm
- Screw thread: M2
- Tightening torque, min: 0.22 Nm
- Tightening torque max: 0.25 Nm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.5 mm²
- Conductor cross section AWG min.: 28
- Conductor cross section AWG max.: 16
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 0.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 0.75 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 0.34 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 0.5 mm²
- Minimum AWG according to UL/CUL: 30
- Maximum AWG according to UL/CUL: 16
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- eCl@ss 9.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
