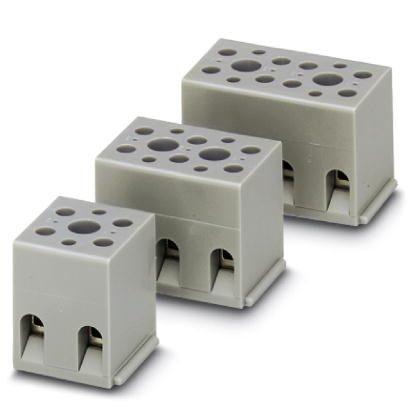

Phoenix Contact G53 Device Terminal Block
The Phoenix Contact G 5/3 device terminal block is a versatile solution for connecting and distributing power in a wide range of industrial applications. Designed for direct mounting, this 3-position terminal block features a nominal cross section of 4 mm² and utilizes a screw connection for secure and reliable connections. The block's touch-proof shock protection enhances safety, while its robust construction ensures durability in demanding environments. It is suitable for applications in control cabinets, machinery, and automation systems where reliable power distribution is essential. Compliant with various standards including CSA, UL Recognized, and IEC, the G 5/3 provides a dependable solution for connecting conductors and ensuring efficient power management.
Phoenix Contact G53 Device Terminal Block Specifications:
- Number of positions: 3
- Number of levels: 1
- Number of connections: 6
- Potentials: 3
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V2
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Ambient temperature (operation): -40 °C ... 80 °C
- Maximum load current: 32 A (with 4 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 22.7 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- Stripping length: 8 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- eCl@ss 4.0: 27141106
- eCl@ss 4.1: 27141106
- eCl@ss 5.0: 27141106
- eCl@ss 5.1: 27141106
- eCl@ss 6.0: 27141106
- eCl@ss 7.0: 27141106
- eCl@ss 8.0: 27141106
- eCl@ss 9.0: 27141106
- ETIM 2.0: EC001284
- ETIM 3.0: EC001284
- ETIM 4.0: EC001284
- ETIM 5.0: EC001284
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
Buy the 2716033 PHOENIX CONTACT Device Terminal Block | myMectronic
Purchase the Phoenix Contact G 5/3 device terminal block securely online for reliable power distribution in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact G53?
You can click on the BUY or RFQ button to purchase G53 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part G53?
You can download the G53 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of G53?
Phoenix Contact
