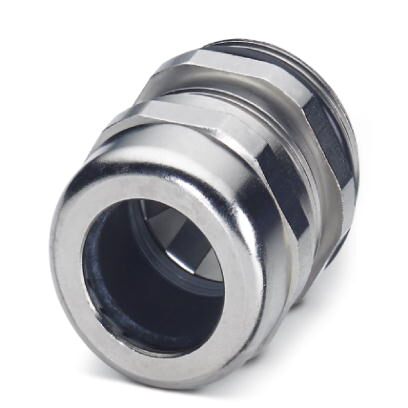

Phoenix Contact GINSECM25S68NNCRSS Nickel-Plated Brass Cable Gland
The PHOENIX CONTACT G-INSEC-M25-S68N-NCRS-S cable gland is a high-quality solution for providing a secure and environmentally protected connection for cables in industrial settings. Constructed from nickel-plated brass, it offers excellent corrosion resistance and durability. The M25 x 1.5 thread allows for compatibility with a wide range of applications, while the IP68 rating ensures protection against dust and water ingress, even under pressure. The gland's design incorporates a robust sealing mechanism and shielding to maintain signal integrity and prevent interference. It is suitable for use in harsh environments and is ideal for applications requiring reliable cable connections, such as automation systems, control panels, and machinery.
Phoenix Contact GINSECM25S68NNCRSS Nickel-Plated Brass Cable Gland Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 5 pc
- GTIN: 4046356923217
- Weight per Piece (excluding packing): 60.000 g
- Custom tariff number: 74199990
- Country of origin: Germany
- Length: 36 mm
- Wrench size, union nut: 27 mm
- Wrench size, support: 27 mm
- Hexagon angular dimension: 30 mm
- Length of the connecting thread: 7 mm
- Feed-through hole diameter: 25.1 mm ... 25.2 mm
- External cable diameter: 11 mm ... 16 mm
- Degree of protection (IP): IP68 (5 bar, 30 minutes)
- Ambient temperature (operation): -40 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: Nickel-plated brass
- Material, insert: Polyamide 6
- Cable seal material: CR/NBR
- O-ring material: Perbunan
- Shielded: yes
- Thread type on connection side: M25 x 1.5
- Torque: 6.7 Nm (Union nut: EN 62444)
- Color: silver
- Impact category: 6
- Execution of the strain relief: A
- Connection: Method 1: Cut the outer sheath, but do not remove it. Feed the cable through the screw connection and then remove the outer sheath. Now pull the cable back until the connection is established between the cable shield and the contact spring. Method 2: Push the braided shield back around 15 ... 20 mm over the outer sheath. Insert the cables into the screw connection until the connection is established between the cable shield and the contact spring.
- Manufacturer: Jacob
- Manufacturer Designation: 50.625 M/EMVD
- Halogen-free: no
- Connection in acc. with standard: CUL
- China RoHS: Environmentally Friendly Use Period = 50
- UL Listed: QCRV.E140310
- UL Recognized: QCRV2.E140310
- cUL Recognized: QCRV8.E140310
- cUL Listed: QCRV7.E140310
- cULus Recognized: N/A
- cULus Listed: N/A
