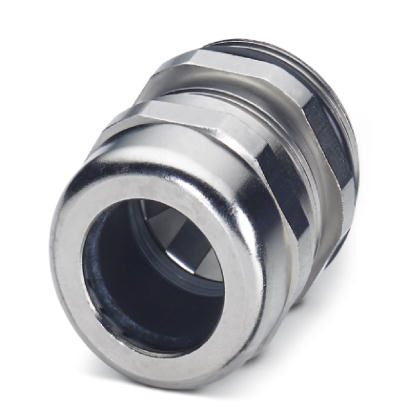

Phoenix Contact GINSECM40M68NNCRSS Nickel-Plated Brass Cable Gland
The PHOENIX CONTACT G-INSEC-M40-M68N-NCRS-S cable gland provides a secure and environmentally sealed connection for cables in demanding industrial environments. Constructed from nickel-plated brass, it offers excellent corrosion resistance and durability. The M40 x 1.5 thread ensures compatibility with standard industrial equipment, while the IP68 rating guarantees protection against dust and water ingress, even under pressure. This cable gland is ideal for applications requiring robust cable management and reliable performance, such as machinery, automation systems, and outdoor installations. It supports a wide range of cable diameters and offers flexible connection methods for optimal cable handling.
Phoenix Contact GINSECM40M68NNCRSS Nickel-Plated Brass Cable Gland Specifications:
- Material: Nickel-plated brass
- External Cable Diameter: 19 mm ... 27 mm
- Shielded: yes
- Connecting Thread: M40 x 1.5
- IP Rating: IP68 (5 bar, 30 minutes)
- Operating Temperature: -40 °C ... 100 °C
- Number of Conductors: 1
- Torque: 13.5 Nm
- Halogen-free: no
- Connection Type: Method 1 or Method 2 (cable sheath handling)
- Country of Origin: Germany
- Weight: 176.000 g
- Custom Tariff Number: 74199990
- Packing Unit: 1 pc
- Minimum Order Quantity: 5 pc
- Feed-through Hole Diameter: 40.1 mm ... 40.3 mm
- Wrench Size (Union Nut): 43 mm
- Wrench Size (Support): 43 mm
- Hexagon Angular Dimension: 46 mm
- Length of Connecting Thread: 8 mm
- Impact Category: 7
- Execution of Strain Relief: A
- Material Insert: Polyamide 6
- Cable Seal Material: CR/NBR
- O-ring Material: Perbunan
