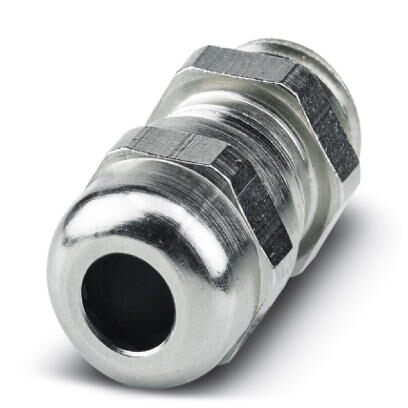

Phoenix Contact GINSM12S68NNNESS M12 Nickel-Plated Cable Gland
The PHOENIX CONTACT G-INS-M12-S68N-NNES-S cable gland is a critical component for establishing reliable and protected connections in industrial environments. Constructed from nickel-plated brass, this gland offers excellent corrosion resistance and durability. Its M12 x 1.5 thread ensures compatibility with standard M12 connectors, while the integrated O-ring provides a watertight seal. The gland is suitable for applications requiring high degrees of protection, such as automated machinery, sensors, and control systems exposed to harsh conditions. It supports cables with an external diameter of 3 to 6.5 mm and is designed for easy installation with proper torque application.
Phoenix Contact GINSM12S68NNNESS M12 Nickel-Plated Cable Gland Specifications:
- Length: 27 mm
- Wrench size, union nut: 14 mm
- Wrench size, support: 14 mm
- Hexagon angular dimension: 15.5 mm
- Length of the connecting thread: 6 mm
- Feed-through hole diameter: 12.1 mm ... 12.3 mm
- External cable diameter: 3 mm ... 6.5 mm
- Degree of protection (IP): IP69 (DIN EN 60529 / IEC 60529)
- Degree of protection (NEMA): 4X
- Ambient temperature (operation): -40 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: Nickel-plated brass
- Material, insert: Polyamide 6
- Cable seal material: CR
- O-ring material: Perbunan
- Shielded: no
- Thread type on connection side: M12 x 1.5
- Torque: 5 Nm ± ()
- Color: silver
- Impact category: 5
- Execution of the strain relief: A
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 12.000 g
- Custom tariff number: 74199990
- Country of origin: Turkey
- Halogen-free: no
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50 years
