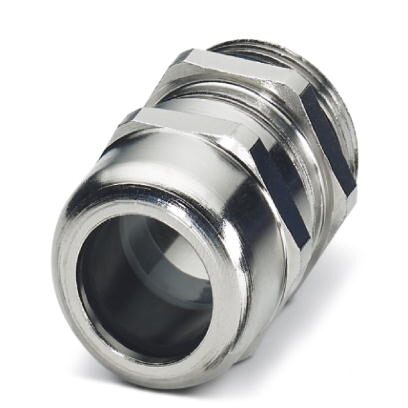

Phoenix Contact GINSM16S68NNNESS M16 Nickel-Plated Cable Gland
The PHOENIX CONTACT G-INS-M16-S68N-NNES-S cable gland is a critical component for ensuring secure and reliable cable connections in harsh industrial environments. Constructed from nickel-plated brass, this gland provides excellent corrosion resistance and durability. Its M16 thread allows for easy integration into standard systems, while the neoprene seals and O-ring provide a tight, waterproof seal. Suitable for applications requiring high protection ratings, such as machinery, outdoor enclosures, and automated systems, this cable gland ensures long-term performance and minimizes the risk of equipment failure due to environmental factors. It is ideal for applications requiring IP69K protection.
Phoenix Contact GINSM16S68NNNESS M16 Nickel-Plated Cable Gland Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 28.0 g
- Custom tariff number: 74199990
- Country of origin: Turkey
- Length: 34 mm
- Wrench size, union nut: 20 mm
- Wrench size, support: 20 mm
- Hexagon angular dimension GRP: 22 mm
- Length of the connecting thread: 7 mm
- Feed-through hole diameter: 16.1 mm ... 16.3 mm
- External cable diameter: 5 mm ... 10 mm
- Degree of protection: IP69K, IP68 (5 bar, 30 min.), IP66, 4X
- Ambient temperature (operation): -20 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: Brass, nickel-plated
- Seal material: Neoprene
- Cable seal material: Neoprene
- O-ring material: NBR
- Shielded: No
- Thread type on connection side: M16
- Torque: 4 Nm (Union nut)
- Color: silver
- eCl@ss 5.1: 27081002
- eCl@ss 6.0: 27081002
- eCl@ss 8.0: 27149109
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
- UL Recognized: Yes
- cUL Recognized: Yes
- cULus Recognized: Yes
Buy the G-INS-M16-S68N-NNES-S PHOENIX CONTACT M16 Nickel-Plated Cable Gland | myMectronic
Secure your industrial connections with the genuine PHOENIX CONTACT G-INS-M16-S68N-NNES-S cable gland. Buy now for reliable performance and peace of mind.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact GINSM16S68NNNESS?
You can click on the BUY or RFQ button to purchase GINSM16S68NNNESS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part GINSM16S68NNNESS?
You can download the GINSM16S68NNNESS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of GINSM16S68NNNESS?
Phoenix Contact
