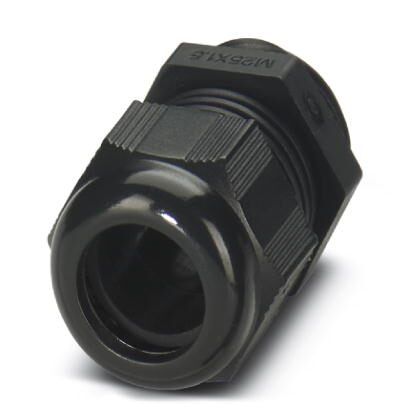

Phoenix Contact GINSM25L68NPNESBK M25 Cable Gland
The PHOENIX CONTACT G-INS-M25-L68N-PNES-BK cable gland provides a reliable and sealed entry point for cables in industrial environments. Constructed from durable PA material, it offers excellent resistance to chemicals, UV radiation, and mechanical stress. The integrated neoprene cable seal and IP68 rating (5 bar / 0.5 h) ensure a watertight and dustproof connection, protecting sensitive equipment from harsh conditions. This cable gland is suitable for a wide range of applications, including machinery, control cabinets, and outdoor installations where reliable cable protection is essential. It is compatible with cables having an external diameter of 13-18mm and features a M25 connecting thread for easy integration into existing systems.
Phoenix Contact GINSM25L68NPNESBK M25 Cable Gland Specifications:
- Length: 42 mm
- Wrench size, union nut: 33 mm
- Wrench size, support: 33 mm
- Hexagon angular dimension: 33.5 mm
- Length of the connecting thread: 10 mm
- Feed-through hole diameter: 25.1 mm ... 25.2 mm
- External cable diameter: 13 mm ... 18 mm
- Degree of protection: IP68 (5 bar / 0.5 h)
- Ambient temperature (operation): -20 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: PA
- Cable seal material: Neoprene
- Shielded: No
- Thread type on connection side: M25
- Thread pitch: 1.5 mm
- Torque (Union nut): 3.5 Nm
- Torque (Support): 3.5 Nm
- Torque (UL514 B: union nut / support): 9 Nm
- Flammability rating according to UL 94: V2
- Impact category: 4
- Execution of the strain relief: A
- Packing unit: 1
- GTIN: 4055626373126
- Custom tariff number: 39269097
- UL Recognized: E199260
- cUL Recognized: E199260
- EAC: EAC-Zulassung
