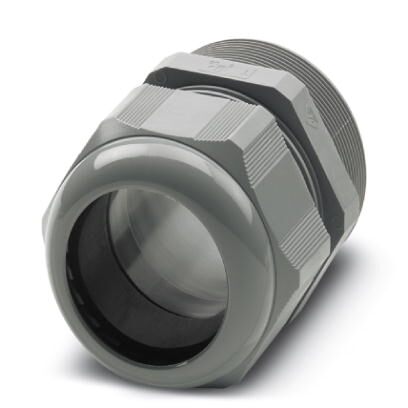

Phoenix Contact GINSM63L68LPNESGY Cable Gland M63
The Phoenix Contact G-INS-M63-L68L-PNES-GY cable gland offers a secure and environmentally sealed connection for cables. Constructed from durable Polyamide 6, this gland is ideal for industrial applications where protection from dust and moisture is critical. The M63 connecting thread ensures compatibility with standard systems, while the IP68 rating guarantees resistance to water ingress under pressure. Its robust design and reliable sealing make it suitable for a wide range of applications including machinery, control cabinets, and outdoor installations. The gland is designed to accommodate cables with an external diameter between 34 and 44 mm, providing a secure and tight fit.
Phoenix Contact GINSM63L68LPNESGY Cable Gland M63 Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 100.0 g
- Custom tariff number: 39269097
- Country of origin: Turkey
- Length: 75 mm
- Wrench size, union nut: 65 mm
- Wrench size, support: 65 mm
- Hexagon angular dimension GRP: 72.2 mm
- Length of the connecting thread: 18 mm
- Feed-through hole diameter: 63.1 mm ... 63.3 mm
- External cable diameter: 34 mm ... 44 mm
- Degree of protection: IP68 (5 bar / 0.5 h)
- Ambient temperature (operation): -20 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: Polyamide 6
- Seal material: Neoprene
- Torque (Union nut): 12 Nm
- Flammability rating according to UL 94: V2
- Color: silver gray
- Connection in acc. with standard: CSA
- eCl@ss 5.1: 27149109
- eCl@ss 6.0: 27149109
- eCl@ss 8.0: 27149109
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
