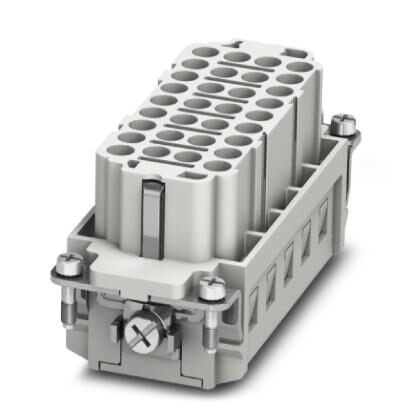

Phoenix Contact HCBB32ICTF 32-Position Heavycon Socket Insert
The PHOENIX CONTACT HC-BB32-I-CT-F is a high-quality, 32-position socket insert specifically engineered for demanding industrial environments. This heavy-duty connector utilizes a crimp connection method, ensuring a secure and reliable electrical connection. The integrated plastic coding profile allows for easy identification and prevents mismating. Designed to be used with HC-B16 housings, the HC-BB32-I-CT-F is ideal for applications requiring robust power and data transmission, such as automated machinery, industrial control systems, and renewable energy infrastructure. Its robust construction and high-quality materials ensure long-term reliability and performance in harsh conditions.
Phoenix Contact HCBB32ICTF 32-Position Heavycon Socket Insert Specifications:
- Packing unit: 1 pc
- GTIN: 4046356149266
- Weight per Piece (excluding packing): 60.000 g
- Custom tariff number: 85366990
- Country of origin: China
- Note: For HC-B16 housing, crimp contacts CK 2,5-ED (crimp contacts not included in scope of supply)
- Connection method: Crimp connection
- Degree of pollution: 3
- Overvoltage category: III
- Number of positions: 32+PE
- Insertion/withdrawal cycles: ≥ 500
- Size: B16
- Contact numbering: 1 - 32
- Conductor cross section: 0.5 mm² ... 4 mm²
- Connection cross section AWG: 20 ... 12
- Stripping length of the individual wire: 7.5 mm
- Minimum housing height: 72 mm
- Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
- Ambient conditions - Ambient temperature (operation): -40 °C ... 125 °C (including heating up of contacts)
- Contact material: Copper alloy
- Contact surface material: Ag (alternatively Au)
- Contact carrier material: PC
- Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
- Electrical characteristics - Rated voltage (III/3): 500 V
- Electrical characteristics - Rated surge voltage: 6 kV
- Electrical characteristics - Rated current: 16 A
- Flammability rating according to UL 94: V0
- Environmental Product Compliance - China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Environmental Product Compliance - Hazardous substances: No hazardous substances above threshold values
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27143424
- eCl@ss 5.1: 27261200
- eCl@ss 6.0: 27261200
- eCl@ss 7.0: 27440205
- eCl@ss 8.0: 27440205
- eCl@ss 9.0: 27440205
- ETIM 4.0: EC000438
- ETIM 5.0: EC000438
- ETIM 6.0: EC000438
- ETIM 7.0: EC000438
- UNSPSC 6.01: 30211923
- UNSPSC 7.0901: 39121522
- UNSPSC 11: 39121522
- UNSPSC 12.01: 39121522
- UNSPSC 13.2: 39121522
