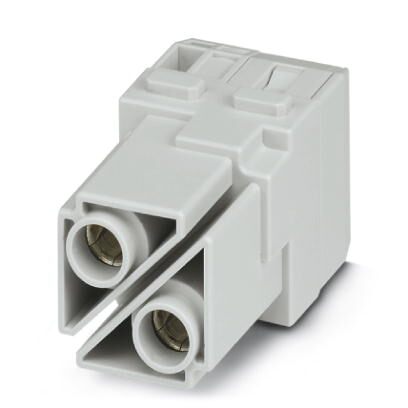

Phoenix Contact HCM02ATF35 2 Position Power Contact Insert
The PHOENIX CONTACT HC-M-02-AT-F-35 is a robust contact insert module specifically engineered for use within HEAVYCON HC-B series housings. This 2-position module provides a secure and reliable connection for power applications, boasting a rated voltage of 1000V and a current carrying capacity of 100A. The axial screw connection ensures a stable and vibration-resistant connection, making it ideal for industrial environments. It is designed for conductors ranging from 10 mm² to 35 mm², and requires a snap-in module frame for installation. The module is constructed with copper alloy contacts, silver plating, and a PC contact carrier, ensuring durability and optimal performance. It is commonly used in power distribution systems, machinery, and automation equipment where reliable power transmission is critical.
Phoenix Contact HCM02ATF35 2 Position Power Contact Insert Specifications:
- Number of positions: 2
- Socket type: Socket
- Connection type: Axial screw connection
- Rated voltage (III/3): 1000 V
- Rated current: 100 A
- Rated surge voltage: 8 kV
- Connection profile: 2
- Ambient temperature (operation): -40 °C ... 125 °C
- Conductor cross section: 10 mm² ... 35 mm²
- Connection cross section AWG: 4 ... 2
- Stripping length of the individual wire: 13 mm
- Tightening torque: 6 Nm (10 mm² ... 16 mm²), 7 Nm (25 mm²), 8 Nm (35 mm²)
- Wire diameter including insulation: 11.4 mm
- Hexagonal socket: SW 4
- Insertion/withdrawal cycles: ≥ 500
- Minimum housing height: 72 mm
- Series: HC-M-HS
- Color: light gray
- Number of module slots: 2
- Flammability rating according to UL 94: V0
- Degree of pollution: 3
- Overvoltage category: III
- Contact material: Copper alloy
- Contact surface material: Ag
- Contact carrier material: PC
- Packing unit: 1 STK
- Minimum order quantity: 2 STK
- Custom tariff number: 85366990
- Country of origin: Poland
- Weight per Piece (excluding packing): 70.000 g
- GTIN: 4055626112701
