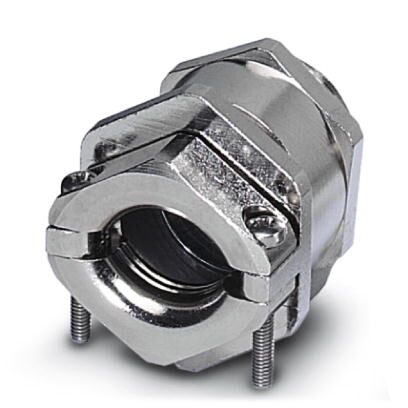

Phoenix Contact HCMKVZM32 Metal Cable Gland
The PHOENIX CONTACT HC-M-KV-Z-M32 cable gland provides a secure and environmentally sealed connection for cables in industrial applications. Constructed from nickel-plated brass, it offers excellent durability and corrosion resistance. The gland incorporates a strain relief clamp to protect the cable from stress and damage, and its M32 thread ensures compatibility with standard industrial equipment. Suitable for applications requiring a robust and reliable cable entry point, this gland is ideal for machinery, control panels, and other demanding environments. It is designed to maintain a high degree of protection against dust and moisture.
Phoenix Contact HCMKVZM32 Metal Cable Gland Specifications:
- Packing unit: 1 pc
- GTIN: 4017918941307
- Weight per Piece: 154.540 g
- Custom tariff number: 74153300
- Country of origin: Germany
- Length: 43 mm
- Length without connecting thread: 35 mm
- Connecting thread diameter: 32 mm
- Wrench size union nut: 42 mm
- Wrench size support: 40 mm
- Hexagon angular dimension: 47 mm
- Length of the connecting thread: 8 mm
- External cable diameter: 18 - 27 mm
- Clamping range of the strain relief clip: 19.00 - 27.00 mm
- Degree of protection IP: IP65
- No. of conductors: 1
- Cable gland material: Nickel-plated brass
- Cable seal material: Perbunan
- O-ring material: NBR
- Shielded: no
- Thread type connection side: M32 x 1.5
- Thread type on connection side: M32
- Torque Support sleeve: 18 Nm
- Torque Union nut: 12 Nm
- Color: silver
- Halogen-free: no
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27149109
- eCl@ss 8.0: 27149109
- eCl@ss 9.0: 27144432
- ETIM 2.0: EC000441
- ETIM 3.0: EC000441
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
- ETIM 6.0: EC000441
- ETIM 7.0: EC000441
- UNSPSC 6.01: 30211808
- UNSPSC 7.0901: 39121408
- UNSPSC 11: 39121408
- UNSPSC 12.01: 39121408
- UNSPSC 13.2: 39121311
- Ambient temperature (operation): -20 °C ... 80 °C (static)
