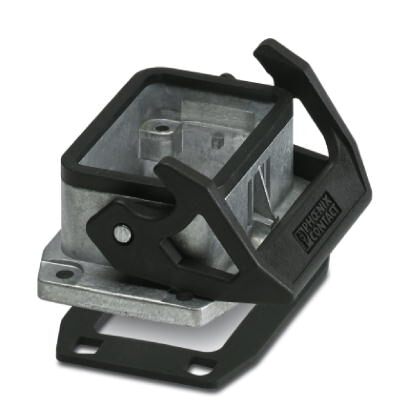

Phoenix Contact HCSTAB06BWSELCAL B6 Panel Mounting Base
The PHOENIX CONTACT HC-STA-B06-BWS-ELC-AL is a HEAVYCON B6 panel mounting base, engineered for demanding industrial environments. Constructed from salt-water-resistant die-cast aluminum with an uncoated surface, this base provides exceptional durability and protection. The integrated single locking latch ensures secure connections, while the conductive profile gasket offers superior shielding against electromagnetic interference. Designed for compatibility with HC-B6, BB10, DD24, and M contact inserts, this panel mounting base is ideal for applications requiring robust connectivity and environmental protection. Its IP66/IP67 rating and NEMA 4X compliance guarantee reliable performance in harsh conditions.
Phoenix Contact HCSTAB06BWSELCAL B6 Panel Mounting Base Specifications:
- Packing unit: 1 STK
- GTIN: 4046356927192
- Weight per Piece: 60.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 80.5 mm
- Length of the assembly cutout: 52 mm
- Width of the assembly cutout: 35 mm
- Degree of protection of housing (IP): IP66
- Degree of protection of housing (NEMA): 4X (UL 50)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: For contact inserts HC-B6, BB10, DD24, M
- Size: B6
- Housing type: Panel mounting base
- Color: silver
- Locking type: With single locking latch
- Torque: 1.5 Nm ... 2 Nm (Mounting screw)
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: Uncoated
- Material lock: Polyamide
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Environmental Product Compliance: No hazardous substances above threshold values
