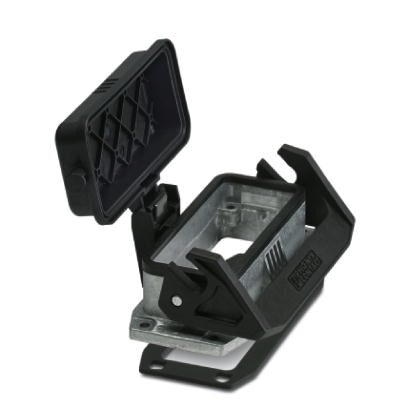

Phoenix Contact HCSTAB16BWSCELCAL B16 Panel Mounting Base
The PHOENIX CONTACT HC-STA-B16-BWSC-ELC-AL is a heavy-duty panel mounting base designed for demanding industrial environments. Constructed from salt-water-resistant aluminum, this base offers excellent protection against harsh conditions and electromagnetic interference. Its single locking latch ensures secure connections, while the flat gasket provides a tight seal. Compatible with a range of contact inserts (HC-B16, BB32, D40, DD72, HS6, M, K), this base is ideal for applications requiring reliable and robust connectivity in challenging environments. It is suitable for use in machinery, automation systems, and other industrial applications where protection from moisture, dust, and electromagnetic interference is critical.
Phoenix Contact HCSTAB16BWSCELCAL B16 Panel Mounting Base Specifications:
- Packing unit: 1 pc
- GTIN: 4046356927260
- Weight per Piece: 140.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 114 mm
- Assembly cutout length: 86 mm
- Assembly cutout width: 35 mm
- IP degree of protection: IP66 (with locked protective cover)
- Operating temperature: -40 °C ... 125 °C
- Note: For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
- Size: B16
- Housing type: Panel mounting base
- Color: gray aluminum
- Locking type: with single locking latch
- Mounting screw torque: 1.5 Nm ... 2 Nm
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: uncoated
- Seal material: NBR, conductive
- Lock material: Polyamide
- Protective cover material: PA
- China RoHS: Environmentally friendly use period: unlimited
- Hazardous substances: No hazardous substances above threshold values
- EAC approval: RU C-DE.AI30.B.01102
- DNV GL approval: TAE000037S
