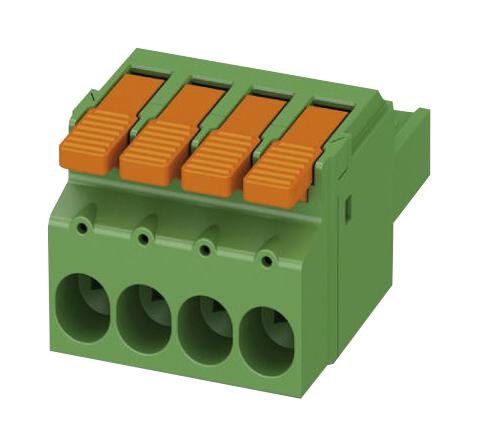

Phoenix Contact LPC64ST762 Printed-circuit board connector
The LPC 6/4-ST-7,62 printed-circuit board connector by Phoenix Contact is designed for secure and reliable electrical connections. It features a push-in spring connection for quick, tool-free wiring, rated for 4A current and 1000V insulation voltage, with a pitch of 7.62 mm. Its compact green housing accommodates four positions and is tin-plated for corrosion resistance. Ideal for automation and control systems, it offers easy installation, high durability, and compliance with international standards for safety and environmental friendliness.
Phoenix Contact LPC64ST762 Printed-circuit board connector Specifications:
- Rated current: 4A
- Rated insulation voltage: 1000 V
- Rated surge voltage: 8kV
- Number of positions: 4
- Pitch: 7.62 mm
- Connection method: Push-in spring connection
- Conductor cross section solid: 0.75 mm² ... 6 mm²
- Conductor cross section flexible: 0.75 mm² ... 6 mm²
- Conductor cross section AWG: 18 ... 10
- Contact material: Cu alloy
- Surface: Hot-dip tin-plated
- Housing color: Green
- Length: 48 mm
- Width: 32.48 mm
- Diameter: 4.0 mm
- Stripping length: 18 mm
- Test voltage: IEC 61984, withstands 8kV surge voltage
- Material compliance: RoHS/WEEE
- Protection class: IP20
- Temperature range: -40°C to +100°C
- Pieces per package: 25
Buy the Phoenix Contact Series LPC 6/4-ST-7,62: LPC64ST762
Upgrade your control panel with the highly reliable LPC 6/4-ST-7,62 printed-circuit board connector from Phoenix Contact. Designed for effortless wiring with push-in spring terminals, it provides a rated current of 4A and withstands insulation voltages up to 1000V. Its compact size and durable tin surface ensure long-term stability, ease of installation, and compliance with international standards. Perfect for automation, control, and industrial applications, this connector guarantees secure connections, minimal maintenance, and exceptional performance in demanding environments.
Buy Phoenix Contact LPC 6/4-ST-7,62 now and experience unmatched reliability and high-quality electrical connections for industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact LPC64ST762?
You can click on the BUY or RFQ button to purchase LPC64ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPC64ST762?
You can download the LPC64ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPC64ST762?
Phoenix Contact
