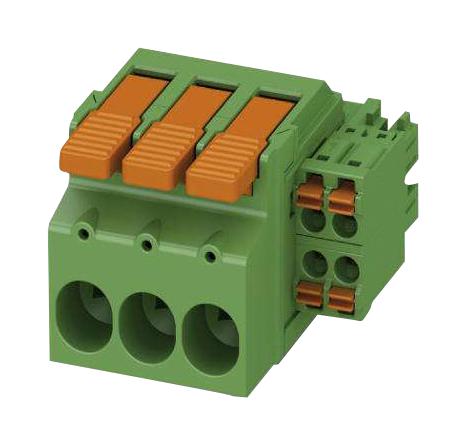

Phoenix Contact LPCH644ST762 PCB hybrid connector
The PCB hybrid connector LPCH 6/ 4+4-ST-7,62 is a reliable printed-circuit board connector designed for industrial use. It features an 8-position push-in spring connection system, a pitch of 7.62 mm, and a rated current of 41 A. The connector is made of tin-plated copper alloy, ensures high durability with compliance to UL 94 V-0 flammability standards, and can handle voltages up to 1000 V. Its robust design supports quick tool-free connections, suitable for demanding electronic and automation applications while providing stable long-term contact stability.
Phoenix Contact LPCH644ST762 PCB hybrid connector Specifications:
- Number of positions: 8
- Pitch: 7.62 mm
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Connection method: Push-in spring connection
- Conductor cross section solid: 0.75 mm² ... 10 mm²
- Conductor cross section flexible: 0.75 mm² ... 6 mm²
- Conductor AWG/kemil: 18 ... 8
- Contact Material: Cu alloy
- Contact surface: Tin-plated (4-8 µm Sn)
- Housing Material: PAGF, Group 1, UL 94 V-0
- Dimensions: Length 48 mm, Width 40.3 mm, Height 35.65 mm, Pitch 7.62 mm
- Insulation coordination: IEC 60664-1, Clearance and creepage: ≥8mm
- Temperature range (operation): -40°C to 100°C
- Certifications: UL Recognized, RoHS compliant, WEEE compliant
Buy the Phoenix Contact LPCH 6/ 4+4-ST-7,62 – Reliable PCB Hybrid Connector for Industrial Applications
Secure your electronic assembly with the Phoenix Contact LPCH 6/ 4+4-ST-7,62 PCB hybrid connector. Designed for high current capacity and quick, tool-free connections, it offers excellent durability and stability for demanding industrial environments. Its high-quality tin-plated copper contacts ensure reliable electrical performance, supporting voltages up to 1000 V and currents of 41 A. Perfect for automation, control panels, and electronic devices, this connector simplifies wiring, reduces assembly time, and enhances long-term operational stability. Buy online now for dependable connectivity.
Order your Phoenix Contact LPCH 6/ 4+4-ST-7,62 today and ensure fast, secure, and reliable connections in your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH644ST762?
You can click on the BUY or RFQ button to purchase LPCH644ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH644ST762?
You can download the LPCH644ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH644ST762?
Phoenix Contact
