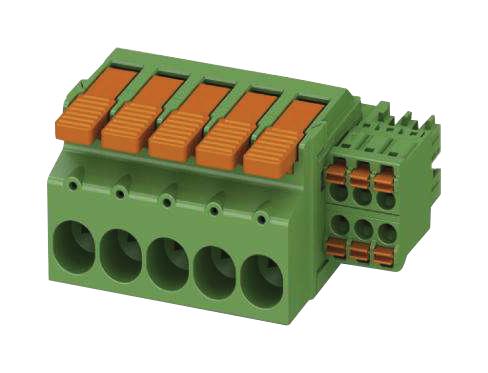

Phoenix Contact LPCH654ST762 PCB hybrid connector
The PCB hybrid connector LPCH 6/ 5+4-ST-7,62 offers a reliable, tool-free push-in spring connection system suitable for industrial applications. With a pitch of 7.62 mm and a contact capacity of 41 A, its design ensures long-term stable contact with clearly visible lever positions for reliable feedback. Made from high-quality tin-plated Cu alloy, it is RoHS-compliant and rated for a maximum voltage of 1000 V. Ideal for compact, versatile printed circuit board connections, this connector is suitable for demanding electrical environments requiring durable, maintenance-friendly solutions.
Phoenix Contact LPCH654ST762 PCB hybrid connector Specifications:
- Connection method: Push-in spring connection
- Number of levels: 1
- Number of connections: 9
- Number of potentials: 9
- Rated current: 4A
- Rated voltage: 1000 V
- Rated surge voltage: 8kV
- Conductor cross section solid: 0.75 mm² ... 10 mm²
- Conductor cross section flexible: 0.75 mm² ... 6 mm²
- Contact material: Copper alloy, tin-plated
- Housing material: PAGF, flammability rating UL 94 VO
- Dimensions: Length 48mm, Width 47.92mm, Height 35.65mm, Pitch 7.62mm
- Ambient temperature (operation): -40°C ... 100°C
- Protection IP code: IP10
- In line with IEC and UL standards for electrical safety and durability
Buy the Phoenix Contact LPCH 6/ 5+4-ST-7,62 – Reliable PCB Hybrid Connector for Industrial Applications
Secure your projects with the Phoenix Contact LPCH 6/ 5+4-ST-7,62 PCB hybrid connector. Featuring a tool-free push-in spring connection, 9 positions, and a robust 41A current capacity, it offers long-term stability and easy installation for demanding PCB applications. Made from high-quality tin-plated copper alloy, this connector ensures durable, reliable electrical contact. With its compact size, it fits seamlessly into tight spaces, providing a dependable connection in industrial environments. Buy online now and enhance your electrical systems with this high-performance connector.
Order your Phoenix Contact LPCH 6/ 5+4-ST-7,62 PCB hybrid connector today and benefit from a stable, versatile connection system suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact LPCH654ST762?
You can click on the BUY or RFQ button to purchase LPCH654ST762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPCH654ST762?
You can download the LPCH654ST762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPCH654ST762?
Phoenix Contact
