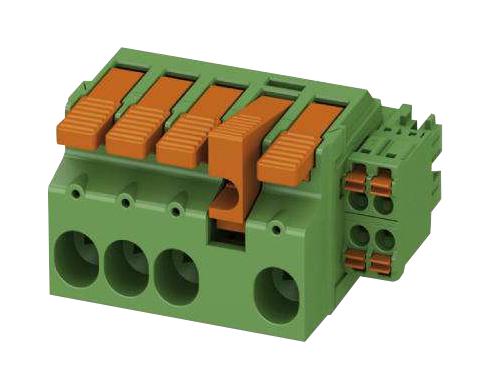

Phoenix Contact LPCH656STL5762 PCB Hybrid Connector
The PCB hybrid connector LPCH 6/ 5+6-STL5-7,62 from Phoenix Contact is designed for reliable electrical connections with a push-in spring connection method, featuring a green housing and sliding latches at position 5. It supports a nominal current of 41 A and a rated voltage of 1000 V, making it suitable for various industrial automation and PCB applications. Its compact design includes 11 positions with a pitch of 7.62 mm, ensuring secure, long-term contact stability for high-performance electrical systems.
Phoenix Contact LPCH656STL5762 PCB Hybrid Connector Specifications:
- Connection method: Push-in spring connection
- Nominal current: 41 A
- Rated voltage: 1000 V
- Number of positions: 11
- Pitch: 7.62 mm
- Housing color: Green
- Contact material: Cu alloy, Tin-plated
- Insulating material: PAGF, Flammability rating UL 94 VO
- Dimensions: Length 48 mm, Width 59.35 mm, Height 35.65 mm
- Conductor cross section: Solid 0.75 mm² to 10 mm², Flexible 0.75 mm² to 6 mm²
- Rated surge voltage: 8 kV
- Electrical tests: IEC 60999-1, IEC 60512 compliance
- Climatic resistance: -40°C to 100°C
- Approvals: cULus Recognized, Ex Approvals
Buy the Phoenix Contact Series PCB Hybrid Connector: LPCH 6/ 5+6-STL5-7,62
Enhance your electrical installation with the reliable PCB hybrid connector LPCH 6/ 5+6-STL5-7,62 from Phoenix Contact. This compact, high-current connector features push-in spring connection technology, supporting up to 41 A and rated at 1000 V for optimal safety and performance. Its 11-position configuration with a pitch of 7.62 mm ensures precise, stable contact for PCB, automation, or industrial applications. Easily connect conductors with solid or flexible cables, while benefiting from long-term contact stability, quick installation, and compliance with international standards. Buy online now and streamline your electrical projects with trusted quality.
Buy Phoenix Contact LPCH 6/ 5+6-STL5-7,62 now and experience unmatched reliability and high-performance electrical connectivity for automation systems.
