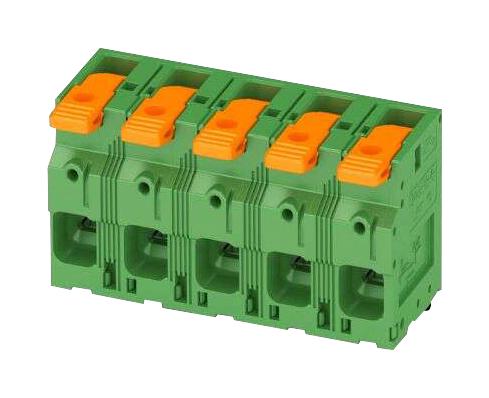

Phoenix Contact LPT163150ZB PCB Terminal Block
This PCB terminal block offers a reliable and efficient connection solution for your electronic assemblies, rated for 76 A and 1000 V. Its lever push-in connection method ensures quick, tool-free, and secure wiring, with a flexible conductor cross section from 0.75 mm² to 16 mm². Designed with a zinc pin layout and a 15 mm pitch, the green housing is made from durable PA material features a wire stripping length of 18-20 mm. Ideal for wave soldering, its stable contact ensures long-term reliability in industrial applications.
Phoenix Contact LPT163150ZB PCB Terminal Block Specifications:
- Rated current: 76 A
- Rated voltage: 1000 V
- Conductor cross section: 0.75 mm² to 16 mm² solid, 0.75 mm² to 25 mm² flexible
- Push-in connection method, lever push-in design for quick wiring
- Housing color: green, material: PA, flammability rating: UL 94 V-0
- Width: 32 mm, pitch: 15 mm, length: 32 mm, height: 18-20 mm stripping length
- Contact material: Cu alloy, tin-plated surface
- Solder pin diameter: 3.6 mm, wire stripping length: 18-20 mm
- Ambient temperature (operation): -40°C to 105°C
- Clearance and creepage distances according to IEC standards, minimum 8 mm
- Packaged in cardboard, 25 pieces per package
- Compliance: RoHS, WEEE, IEC 60068-2-82, UL 94 V-0 flammability
- Suitable for wave soldering, mounting: Wave soldering, conductor/PCB connection direction: 0°
Buy the Buy Phoenix Contact PCB Terminal Block Part Number LPT163150ZB Online
Discover the convenient and reliable Phoenix Contact PCB terminal block, designed for industrial applications with rated current of 76 A and voltage of 1000 V. Its lever push-in connection allows for quick and tool-free wiring, reducing installation time. The green housing is made from robust PA material, ensuring durability and safety. Suitable for wave soldering processes, this terminal block features a 15 mm pitch and a flexible cross section range of 0.75 mm² to 16 mm². Ideal for electrical assemblies needing high reliability and efficiency.
Order your Phoenix Contact LPT 16/ 3-15,0-ZB PCB terminal block today and ensure your electronic projects benefit from quick, reliable, tool-free wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT163150ZB?
You can click on the BUY or RFQ button to purchase LPT163150ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT163150ZB?
You can download the LPT163150ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT163150ZB?
Phoenix Contact
