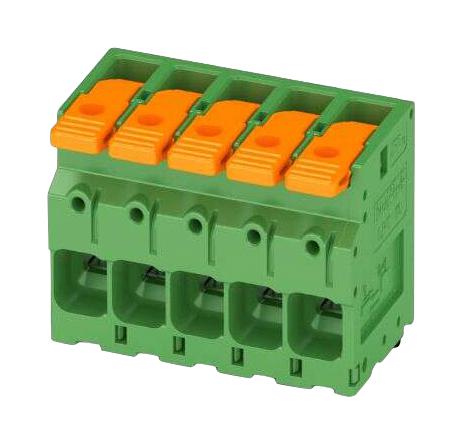

Phoenix Contact LPT165100ZB PCB terminal block
The PCB terminal block LPT 16/ 5-10,0-ZB offers a reliable and efficient connection solution suitable for industrial applications. Featuring a lever push-in connection method, it ensures fast, tool-free conductor insertion and release. With a current rating of 76A and a rated voltage of 1000V, it accommodates conductor cross sections from 0.75 mm² to 16 mm², supporting wave soldering mounting for easy PCB assembly. Its green housing, tin-plated copper contacts, and Zigzag pin layout provide stable, corrosion-resistant connections, ideal for industrial wiring and automation systems.
Phoenix Contact LPT165100ZB PCB terminal block Specifications:
- Nominal current: 76A
- Rated voltage: 1000V across various IEC standards
- Connection method: Lever push-in connection
- Conductor cross section: 0.75 mm² to 16 mm² (solid and stranded), flexible with ferrules
- Stripping length: 18mm to 20mm
- Housing color: Green
- Housing material: PA, flame retardant (UL 94 V-0), CTI 600
- Dimensions: Length 32mm, width (not specified), height (not specified), pitch: 10mm
- Pin layout: Zigzag pinning W
- Contact material: Copper alloy, tin-plated (10-16 μm)
- Maximum conductor wire AWG: 18.4
- Environmental conditions: Storage -40°C to 70°C, operation -40°C to 105°C
- Dimensions for PCB design: Hole diameter 1.7mm
- Packaging: 25 pieces per box, packed in cardboard
Buy the Phoenix Contact LPT 16/ 5-10,0-ZB – Reliable PCB Terminal Block for Industrial Applications
Discover the Phoenix Contact PCB terminal block designed for reliable, efficient industrial wiring. With a lever push-in connection, 76A current capacity, and a rated voltage of 1000V, it supports quick assembly and long-term stability. Its green flame-retardant housing, tin-plated copper contacts, and zigzag pin layout ensure corrosion resistance and secure connections. Ideal for wave soldering, this component simplifies wiring in automation, machinery, and control systems. Purchase online now for a robust, dependable connection solution that simplifies maintenance and enhances efficiency.
Get Phoenix Contact LPT 16/ 5-10,0-ZB today—built for precision, durable connections, and quick, tool-free assembly in industrial wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT165100ZB?
You can click on the BUY or RFQ button to purchase LPT165100ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT165100ZB?
You can download the LPT165100ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT165100ZB?
Phoenix Contact
