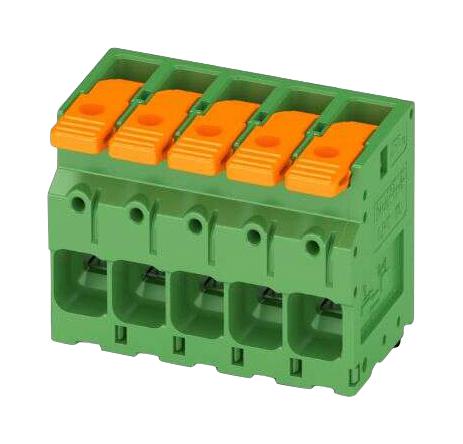

Phoenix Contact LPT168100ZB PCB Terminal Block
The PCB terminal block LPT 16/ 8-10,0-ZB is a reliable, high-current connection component designed for industrial PCB applications. It features a lever push-in connection for quick, secure wire termination, supporting conductor cross-sections from 0.75 mm² to 16 mm² and flexible or rigid conductors. With a pitch of 10 mm, it provides 8 potential connections in a single row, ensuring long-term contact stability thanks to defined contact force. Suitable for wave soldering, it offers easy operation via a color-coded lever, making maintenance efficient and straightforward.
Phoenix Contact LPT168100ZB PCB Terminal Block Specifications:
- Nominal current: 76 A
- Rated voltage: 1000 V
- Number of potentials: 8
- Number of positions: 8
- Pitch: 10 mm
- Mounting: Wave soldering
- Connection method: Lever push-in
- Conductor cross section (solid): 0.75 mm² to 16 mm²
- Conductor cross section (flexible): 0.75 mm² to 25 mm²
- Conductor with ferrule (without plastic sleeve): 0.75 mm² to 16 mm²
- Material contact: Copper alloy, tin-plated
- Housing color: Green
- Housing: PA, flammability rating UL 94 V-0
- Dimensions: Length 32 mm, width, height varies
- Hole diameter for PCB: 1.7 mm
- Ambient temperature range: -40°C to 105°C
- Separation distances: Minimum clearance 8 mm, creepage 8 mm
- Packaging: 10 pieces per box
Buy the Phoenix Contact LPT 16/ 8-10,0-ZB – Reliable PCB Terminal Block for Industrial Applications
Enhance your industrial electronic assemblies with the Phoenix Contact PCB terminal block, featuring a lever push-in connection for quick wiring, supporting up to 76 A and 1000 V. Its 10 mm pitch and 8 potential positions make it ideal for reliable PCB connections requiring high current capacity. Designed for wave soldering, the green housing and robust construction ensure long-term durability. Easy to operate with color-coded levers, it simplifies the installation and maintenance process while ensuring stable, vibration-resistant contact over its service life. Order now to improve your project’s efficiency.
Order your Phoenix Contact LPT 16/ 8-10,0-ZB PCB terminal block today and enhance your industrial wiring with quick, secure, and maintenance-friendly connections.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT168100ZB?
You can click on the BUY or RFQ button to purchase LPT168100ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT168100ZB?
You can download the LPT168100ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT168100ZB?
Phoenix Contact
