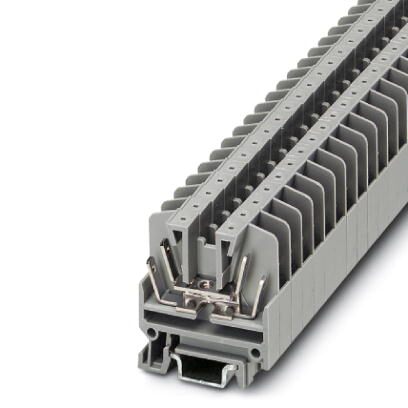

Phoenix Contact MBK5EFSFS Mini Feed-Through Terminal Block
The PHOENIX CONTACT MBK 5/E-FS/FS mini feed-through terminal block offers a compact and efficient solution for connecting wires in control cabinets. Its slip-on connection simplifies installation, while the compact design saves valuable space. The ability to mount on a 15 mm DIN rail allows for organized and efficient panel layouts. With a nominal current of 16A and a nominal voltage of 500V, this terminal block is suitable for a wide range of industrial applications, including power distribution, automation, and control systems. The clear marking of all terminal points and standardized plug-in bridges facilitate easy potential distribution and maintenance.
Phoenix Contact MBK5EFSFS Mini Feed-Through Terminal Block Specifications:
- Base Series: MBK
- Connection Type: Slip-on connection
- Cross Section: 0.5 - 1 mm²
- AWG: 20-18
- Width: 6.2 mm
- Color: gray
- Mounting: NS 15
- Number of Levels: 1
- Number of Connections: 8
- Nominal Cross Section: 4 mm²
- Insulating Material: PA-F
- Flammability Rating: HB
- Rated Surge Voltage: 6 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Load Current: 16 A
- Nominal Current IN: 16 A
- Nominal Voltage UN: 500 V
- Open Side Panel: Yes
- Minimum Order Quantity: 50 pc
- Custom Tariff Number: 85369010
- Country of Origin: Poland
- Packing Unit: 1 pc
- UL Recognized Nominal Current: 5 A
- UL Recognized Nominal Voltage: 300 V
- cUL Recognized AWG: 26-10
- cUL Recognized Nominal Current: 5 A
- cUL Recognized Nominal Voltage: 300 V
