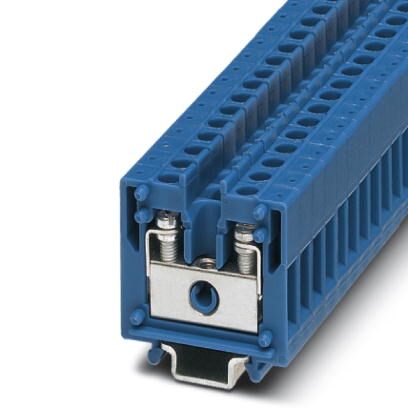

Phoenix Contact MBK5EZBU Mini Feed-Through Terminal Block
The Phoenix Contact MBK 5/E-Z BU mini feed-through terminal block provides a reliable and compact solution for connecting wires in various industrial applications. Its space-saving design allows for efficient use of panel space, while the screw connection ensures secure and durable connections. The terminal block is suitable for use in control cabinets, automation systems, and other electrical installations where a compact and reliable connection is required. It is compatible with standardized plug-in bridges for easy potential distribution and offers clear marking of all terminal points for simplified identification and maintenance.
Phoenix Contact MBK5EZBU Mini Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Width: 6.2 mm
- End cover width: 1 mm
- Length: 28 mm
- Height NS 15: 32 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Cross section with insertion bridge, solid max.: 4 mm²
- Cross section with insertion bridge, stranded max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- Stripping length: 8 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 6.41 g
- Custom tariff number: 85369010
- Country of origin: Poland
- eCl@ss 4.0: 27141123
- eCl@ss 4.1: 27141123
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
