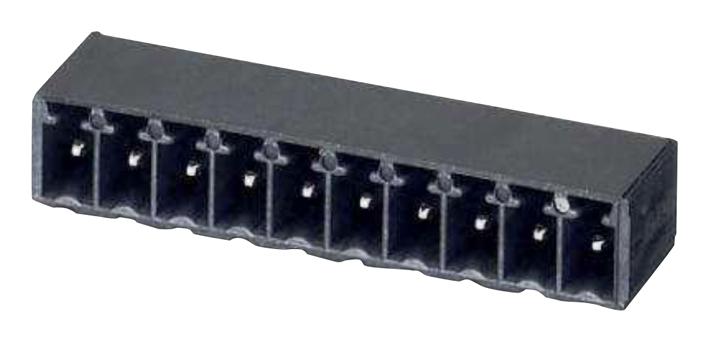

Phoenix Contact MC1510G35P26THR PCB header connector
This PCB header connector is designed for secure and reliable connections on printed circuit boards. It features 10 positions with a 3.5 mm pitch, rated for 8 A and 160 V, suitable for SMT soldering and designed for flexible device integration. Made with tin-plated contacts and encased in a black insulating material, it ensures robust electrical performance and ease of assembly, meeting industry standards with UL 94 flammability rating and compliance with VDE, cULus, and EAC approvals. It is ideal for high-quality electronic applications requiring precise and durable connections.
Phoenix Contact MC1510G35P26THR PCB header connector Specifications:
- Number of positions: 10
- Pitch: 3.5 mm
- Rated current: 8 A
- Rated voltage: 160 V
- Contact surface: Tin
- Material: Insulating material group Ma, LcP
- Connection method: SMT soldering
- Color: Black
- Dimensions: Length 9.2 mm, Width 36.39 mm, Height 9.5 mm, Construction height 6.9 mm, Pin dimensions 0.8 x 0.8 mm, Solder pin length 2.6 mm
- Flammability rating according to UL 94 V-0
- Rated surge voltage: 2.5 kV
- Compliance: VDE, cULus, EAC, China RoHS
- Weight per piece: approximately 2.2 g
- Environmental: Unlimited use period, no hazardous substances above threshold
- Standards: EN-VDE, UL, IEC schemes
Buy the Phoenix Contact Series MC 1,5/10-G-3,5 P26 THR: MC1510G35P26THR
Secure your electronic assemblies with the high-quality PCB header connector featuring 10 positions, 3.5 mm pitch, and 8 A rated current. Designed for SMT soldering, this connector provides durable, precise connections suitable for various applications. Made with tin-plated contacts in a black insulating body, it offers excellent electrical performance and compliance with global industry standards, including UL 94 V-0 flammability rating and certifications from VDE, cULus, and EAC. Easy to install, reliable, and compliant with environmental regulations, it's ideal for any demanding electronic assembly.
Order your Phoenix Contact Series MC 1,5/10-G-3,5 P26 THR today and ensure reliable PCB connections with industry-grade quality for your electronic projects.
Frequently Asked Questions
Where can I buy Phoenix Contact MC1510G35P26THR?
You can click on the BUY or RFQ button to purchase MC1510G35P26THR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MC1510G35P26THR?
You can download the MC1510G35P26THR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MC1510G35P26THR?
Phoenix Contact
