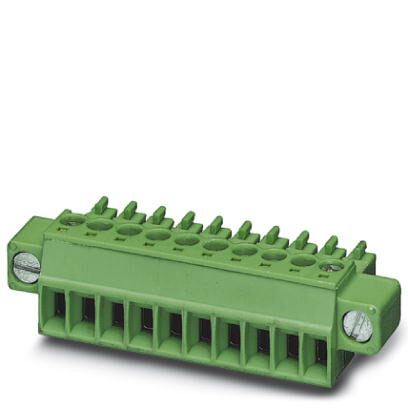

Phoenix Contact MC1510STF35 10 Position Connector
The Phoenix Contact MC 1 5/10-STF-3 5 is a robust and reliable 10-position printed-circuit board connector designed for demanding industrial environments. This connector offers a secure screw connection with a tension sleeve, ensuring a stable and long-lasting electrical connection. With a nominal current of 8A and a rated voltage of 160V, it's suitable for a wide range of applications, including power distribution, automation, and control systems. The connector's compact design and easy integration simplify installation and maintenance, while its generous wiring space and low design height contribute to efficient and space-saving system design. Individual position coding is possible, enhancing system reliability and preventing misconnections. It is ideal for applications requiring secure and dependable power transmission.
Phoenix Contact MC1510STF35 10 Position Connector Specifications:
- Base Article No.: 1847204
- Nominal Current: 8 A
- Rated Voltage (III/2): 160 V
- Number of Positions: 10
- Pitch: 3.5 mm
- Connection Method: Screw connection with tension sleeve
- Color: green
- Contact Surface: Tin
- Insulating Material Group: I
- Rated Surge Voltage (III/3): 2.5 kV
- Rated Surge Voltage (III/2): 2.5 kV
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Voltage (III/3): 160 V
- Rated Voltage (II/2): 320 V
- Nominal Cross Section: 1.5 mm²
- Maximum Load Current: 8 A (with 1.5 mm² conductor cross section)
- Insulating Material: PA
- Flammability Rating (UL 94): V0
- Stripping Length: 7 mm
- Tightening Torque (min): 0.22 Nm
- Tightening Torque (max): 0.25 Nm
- Conductor Cross Section Solid (min): 0.14 mm²
- Conductor Cross Section Solid (max): 1.5 mm²
- Conductor Cross Section Flexible (min): 0.14 mm²
- Conductor Cross Section Flexible (max): 1.5 mm²
- Conductor Cross Section Flexible with Ferrule (min): 0.25 mm²
- Conductor Cross Section Flexible with Ferrule (max): 0.5 mm²
- AWG (min): 28
- AWG (max): 16
- Packing Unit: 1 pc
- Country of Origin: United States
- Custom Tariff Number: 85366990
- Weight per Piece: 8.03 g
