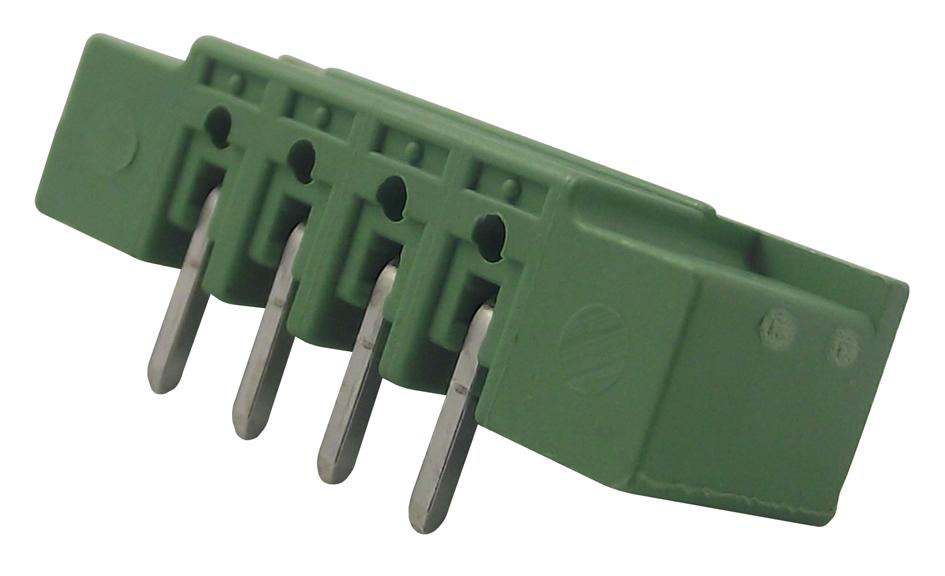

Phoenix Contact MC154GF381LR printed circuit connector
This printed-circuit board connector features a 3.81 mm pitch and four positions, designed for reliable soldering. It operates at a rated voltage of 160 V (III/2) and a nominal current of 8 A, suitable for various automation and electronic applications. Made with tin-contact surfaces and a green insulating body, it provides durable connections, UL and cUL recognition, and a maximum surge voltage of 2.5 kV. Its compact design includes a length of 9.2 mm, pin dimensions of 0.8 x 0.8 mm, and a hole diameter of 1.2 mm, ensuring secure mounting and easy integration into circuit boards.
Phoenix Contact MC154GF381LR printed circuit connector Specifications:
- Pitch: 3.81 mm
- Number of positions: 4
- Rated voltage: 160 V (III/2)
- Rated current: 8 A
- Contact surface: Tin
- Length: 9.2 mm
- Pin dimensions: 0.8 x 0.8 mm
- Hole diameter: 1.2 mm
- Max surge voltage: 2.5 kV
- Insulating material: Polymer (green)
- Flammability class: UL 94V-0
- Color: Green
- Assembly: Soldering
- Insulating material group: Ma
- Operating temperature range: Not specified, externally typical range -55°C to +105°C
- Certifications: UL Recognized, cUL Recognized
Buy the Phoenix Contact Series MC 1,5/ 4-GF-3,81-LR: MC154GF381LR
Purchase the Phoenix Contact MC154GF381LR connector online today to ensure a secure, durable connection for your electronic projects. This four-position connector with a 3.81 mm pitch is ideal for automation, control panels, and electronic assemblies. Its compact design features tin contacts, UL and cUL recognition, and a rated voltage of 160 V with 8 A current capacity. Soldering assembly ensures reliable performance, and the green insulating body makes installation straightforward. Buy online now for fast delivery and seamless integration into your electronic systems.
Get Phoenix Contact MC154GF381LR today—built for precision, reliable soldering, and long-lasting durability.
Frequently Asked Questions
Where can I buy Phoenix Contact MC154GF381LR?
You can click on the BUY or RFQ button to purchase MC154GF381LR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MC154GF381LR?
You can download the MC154GF381LR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MC154GF381LR?
Phoenix Contact
