Phoenix Contact MKDS10HV5ZB1016 Datasheet & Stock

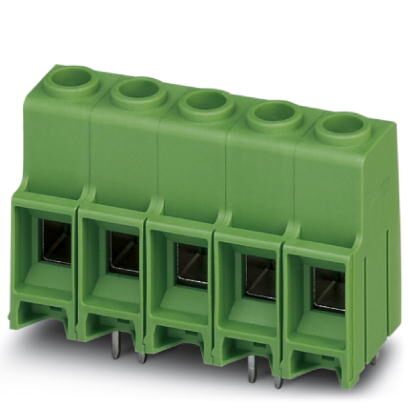

This is a PCB terminal block rated for a nominal current of 76 A and a rated voltage of 1000 V (according to IEC 60320/2). It features a nominal cross-section of 10 mm², with a pitch of 10.16 mm. The terminal block has five positions and utilizes a screw connection method with a tension sleeve for secure wiring. It is designed for wave soldering during the mounting process. The conductor/PCB connection is oriented at 0°, with a green color. The pin layout follows a zigzag pattern (W configuration), and solder pins are 5 mm long.
Frequently Asked Questions
Where can I buy Phoenix Contact MKDS10HV5ZB1016?
You can click on the BUY or RFQ button to purchase MKDS10HV5ZB1016 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MKDS10HV5ZB1016?
You can download the MKDS10HV5ZB1016 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MKDS10HV5ZB1016?
Phoenix Contact
