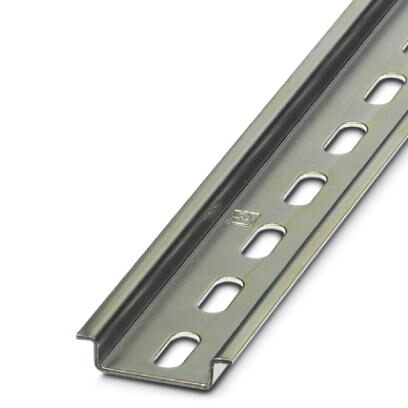

Phoenix Contact NS3575PERF755MM Perforated DIN Rail
The Phoenix Contact NS 35/ 7.5 PERF 755MM is a standard perforated DIN rail, crucial for organizing and securing components within electrical enclosures. Constructed from galvanized and passivated steel, it offers robust corrosion resistance and a long service life. Its 35mm width and 7.5mm height are compliant with EN 60715 standards, ensuring compatibility with a wide range of devices. The 755mm length provides ample space for mounting multiple components, while the strategically placed perforations facilitate flexible and secure attachment. This DIN rail is commonly used in industrial automation, control panels, and power distribution systems to maintain order and efficiency.
Phoenix Contact NS3575PERF755MM Perforated DIN Rail Specifications:
- Height: 7.5 mm
- Length: 755 mm
- Width: 35 mm
- Hole width: 15.00 mm
- Hole height: 6.20 mm
- Drill hole spacing: 25.00 mm
- Material: Steel
- Coating: galvanized, passivated with a thick layer
- Color: silver
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4017918932640
- Weight per Piece: 240.000 g
- Custom tariff number: 72166190
- Country of origin: Germany
- eCl@ss 4.0: 23150300
- eCl@ss 4.1: 23150300
- eCl@ss 5.0: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27400600
- eCl@ss 7.0: 27400602
- eCl@ss 8.0: 27400602
- eCl@ss 9.0: 27400602
- ETIM 2.0: EC001285
- ETIM 3.0: EC001285
- ETIM 4.0: EC000212
- ETIM 5.0: EC000212
- ETIM 6.0: EC001285
- ETIM 7.0: EC001285
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 39121708
- UNSPSC 11: 39121708
- UNSPSC 12.01: 39121708
- UNSPSC 13.2: 39121708
- UNSPSC 18.0: 39121708
- UNSPSC 19.0: 39121708
- UNSPSC 20.0: 39121708
- UNSPSC 21.0: 39121708
