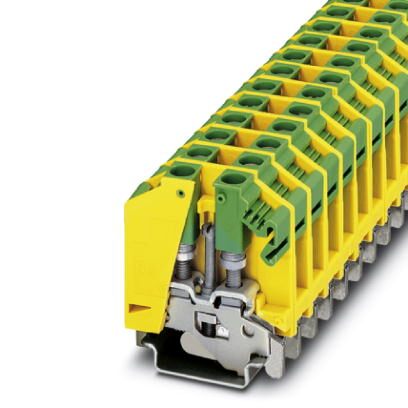

Phoenix Contact OTTA6PE Ground Modular Terminal Block
The PHOENIX CONTACT OTTA 6-PE ground modular terminal block provides a secure and reliable connection for protective conductors in electrical systems. Its bolt connection ensures a robust and durable connection, while the green-yellow color coding clearly identifies it as a grounding point. Designed for a cross-section range of 0.1 to 6 mm², this terminal block is suitable for a wide range of applications in industrial automation, power distribution, and equipment grounding. The compact design allows for efficient space utilization in control cabinets and distribution panels, contributing to a well-organized and safe electrical environment. Compliant with standards like IEC 60947-7-2 and DIN 46234, the OTTA 6-PE ensures adherence to industry best practices and safety regulations.
Phoenix Contact OTTA6PE Ground Modular Terminal Block Specifications:
- Packing unit: 1 pc
- Weight per Piece: 34.39 g
- Custom tariff number: 85369010
- Country of origin: India
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: green-yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-2
- Open side panel: No
- Length: 43.5 mm
- Width: 12 mm
- Height NS 35/7,5: 52 mm
- Height NS 35/15: 59.5 mm
- Height NS 32: 57 mm
- Conductor cross section solid min.: 0.1 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.1 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- Connection method: Bolt connection
- Connection in acc. with standard_1: DIN 46 234
- Min. cross section_1: 0.1 mm²
- Max. cross section_1: 6 mm²
- Hole diameter_1: 4.3 mm
- Bolt diameter_1: 4 mm
- Connection in acc. with standard_2: DIN 46237
- Min. cross section_2: 0.5 mm²
- Max. cross section_2: 2.5 mm²
- Hole diameter_2: 4.3 mm
- Bolt diameter_2: 4 mm
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141118
- eCl@ss 6.0: 27141141
- eCl@ss 7.0: 27141141
- eCl@ss 8.0: 27141141
- eCl@ss 9.0: 27141141
- ETIM 2.0: EC000901
- ETIM 3.0: EC000901
- ETIM 4.0: EC000901
- ETIM 5.0: EC000901
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- REACh SVHC: 4-Nonylphenol, ethoxylated
