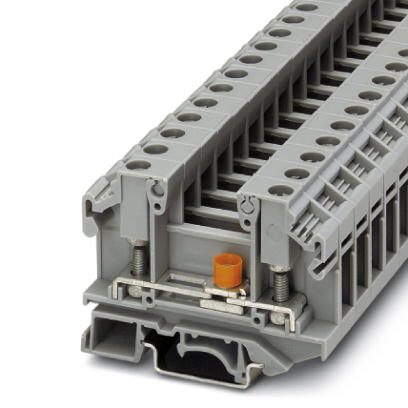

Phoenix Contact OTTA6T Disconnect Terminal Block
The PHOENIX CONTACT OTTA 6-T disconnect terminal block is a versatile solution for a wide range of industrial applications. Its bolt connection ensures a secure and reliable connection, while the disconnect slide provides easy disconnection when needed. Designed for universal use, it accommodates conductor cross sections from 0.1 to 6 mm² and is suitable for various panel mounting options (NS 35/7.5, NS 35/15, NS 32). The terminal block's robust construction and high-quality materials ensure long-lasting performance in demanding environments. It is commonly used in control cabinets, power distribution systems, and machinery for connecting wires and cables.
Phoenix Contact OTTA6T Disconnect Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 6 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 36 A (with 6 mm² conductor cross section)
- Nominal current IN: 36 A
- Nominal voltage UN: 800 V (the nominal voltage applies to insulated cable lugs)
- Open side panel: Yes
- Width: 11 mm
- End cover width: 1.5 mm
- Length: 69 mm
- Height NS 35/7,5: 52 mm
- Height NS 35/15: 59.5 mm
- Height NS 32: 57 mm
- Connection method: Bolt connection
- Conductor cross section solid min.: 0.1 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.1 mm²
- Conductor cross section flexible max.: 6 mm²
- Cable lug connection according to standard: DIN 46 234
- Min. cross section for cable lug connection: 0.1 mm²
- Max. cross section for cable lug connection: 6 mm²
- Hole diameter: 4.3 mm
- Bolt diameter: 4 mm
- Cable lug connection according to standard_2: DIN 46237
- Min. cross section for cable lug connection_2: 0.5 mm²
- Max. cross section for cable lug connection_2: 2.5 mm²
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- eCl@ss 4.0: 27141126
- eCl@ss 4.1: 27141126
- eCl@ss 5.0: 27141126
- eCl@ss 5.1: 27141126
- eCl@ss 6.0: 27141126
- eCl@ss 7.0: 27141126
- eCl@ss 8.0: 27141126
- ETIM 2.0: EC000902
- ETIM 3.0: EC000902
- ETIM 4.0: EC000902
- ETIM 5.0: EC000902
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- CSA_mm²/AWG/kcmil: 22-10
- CSA_Nominal current IN: 25 A
- CSA_Nominal voltage UN: 600 V
- UL Recognized_Nominal current IN: 30 A
- UL Recognized_Nominal voltage UN: 600 V
- LR: LR
- GL: GL
- EAC: EAC
- EAC_2: EAC
