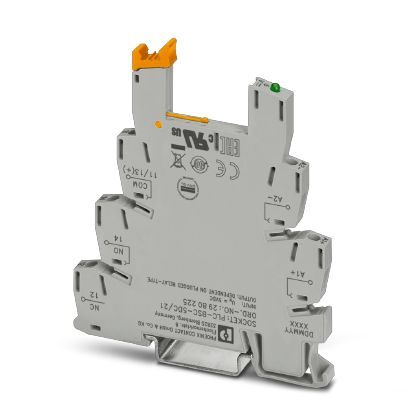

Phoenix Contact PLCBSC5DC21 PLC Relay Socket
The Phoenix Contact PLC-BSC-5DC/21 relay socket is a versatile component for industrial automation systems. This 6.2mm terminal block provides a secure and reliable connection for relays, facilitating integration into PLC-based control systems. It's designed for mounting on DIN rail NS 35/7.5 and features a 5V DC input voltage, along with protective circuits such as a damping diode and polarity protection diode. The socket's robust construction and ease of use make it suitable for a wide range of applications, including machine control, process automation, and building management systems. It is RoHS compliant and has a V0 flammability rating.
Phoenix Contact PLCBSC5DC21 PLC Relay Socket Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 36.0 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 5 V DC
- Status display: LED
- Protective circuit: Damping diode, polarity protection diode
- Connection name (input side): Input side
- Connection method (input side): Screw connection
- Stripping length (input side): 8 mm
- Screw thread (input side): M3
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Connection method (output side): Screw connection
- Stripping length (output side): 8 mm
- Screw thread (output side): M3
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Color: green
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371603
- eCl@ss 5.1: 27371603
- eCl@ss 6.0: 27371603
- eCl@ss 7.0: 27371603
- eCl@ss 8.0: 27371603
- ETIM 2.0: EC001456
- ETIM 3.0: EC001456
- ETIM 4.0: EC001456
- ETIM 5.0: EC001456
- UNSPSC 6.01: 30211917
- UNSPSC 7.0901: 39121516
- UNSPSC 11: 39121516
- UNSPSC 12.01: 39121516
- UNSPSC 13.2: 39121516
