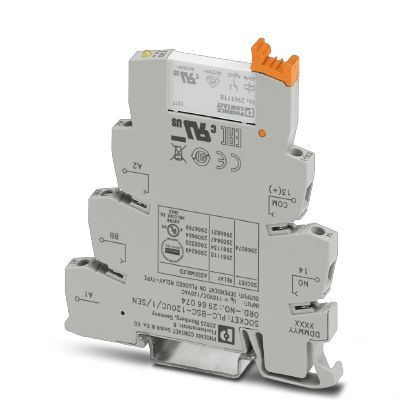

Phoenix Contact PLCRSC120UC1SEN 120V AC/DC Relay Module
The PHOENIX CONTACT PLC-RSC-120UC/1/SEN relay module is a versatile solution for integrating relay functionality into Programmable Logic Controller (PLC) systems. This module combines a PLC-BSC basic terminal block with a plug-in miniature relay, offering a compact and efficient design for DIN rail mounting. It's ideal for applications requiring reliable switching of power circuits, such as industrial automation, building management, and process control. The module's 120V AC/DC input voltage and 1 N/O contact provide flexibility in various control scenarios. The module is designed for easy integration and offers robust performance in demanding industrial environments.
Phoenix Contact PLCRSC120UC1SEN 120V AC/DC Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 35.94 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Nominal input voltage UN: 120 V AC/DC
- Typical input current at UN: 3.5 mA
- Typical response time: 6 ms
- Typical release time: 15 ms
- Protective circuit: Bridge rectifier
- Operating voltage display: yes
- Power dissipation for nominal condition: 0.42 W
- Contact type: 1 N/O contact
- Contact material: AgSnO
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 12 V AC/DC
- Min. switching current: 10 mA
- Maximum inrush current: on request
- Limiting continuous current: 6 A
- Interrupting rating (ohmic load) max.: 140 W (at 24 V DC)
- Interrupting rating (ohmic load) max.2: 20 W (at 48 V DC)
- Interrupting rating (ohmic load) max.3: 18 W (at 60 V DC)
- Interrupting rating (ohmic load) max.4: 23 W (at 110 V DC)
- Interrupting rating (ohmic load) max.5: 40 W (at 220 V DC)
- Interrupting rating (ohmic load) max.6: 1500 VA (for 250 V AC)
- Connection method (Coil side): Screw connection
- Stripping length (Coil side): 8 mm
- Screw thread (Coil side): M3
- Conductor cross section solid (Coil side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Coil side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (Coil side): 26 ... 14
- Connection method (Contact side): Screw connection
- Stripping length (Contact side): 8 mm
- Screw thread (Contact side): M3
- Conductor cross section solid (Contact side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Contact side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (Contact side): 26 ... 14
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Mechanical service life: 2 x 10⁷ cycles
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60664, IEC 60664 A, DIN VDE 0110, DIN EN 50178/DIN VDE 0160, DIN EN 50178/VDE 0160, IEC 60255/DIN VDE 0435
- Pollution degree: 3
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Utilization restriction: EMC: class A product, see manufacturer's declaration
