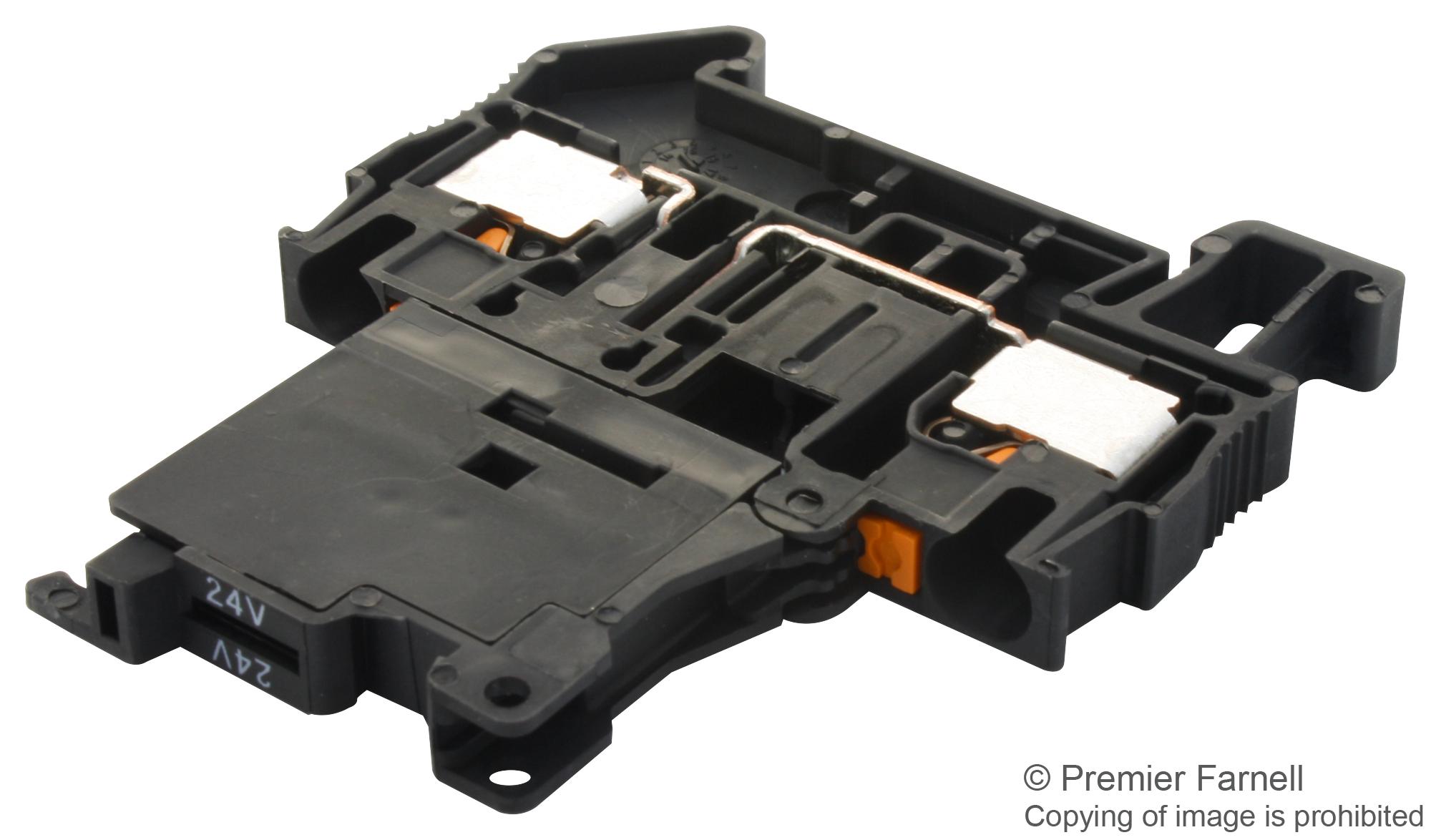

Phoenix Contact PT4HESILED245X20 Fuse Terminal Block
The PHOENIX CONTACT PT 4-HESILED 24 (5X20) fuse modular terminal block is a robust solution for protecting circuits in railway and industrial environments. This lever-type terminal block accepts 5x20mm G fuse inserts and incorporates an LED indicator for easy visual status monitoring at 24V DC. Its Push-in connection simplifies wiring with ferrules or solid conductors, eliminating the need for tools. The compact design and front connection allow for space-saving integration, while the testing facility in the double function shaft and additional test connection ensure reliable maintenance and diagnostics. It is designed for railway industry applications and offers a nominal current of 6.3A and a nominal voltage of 24V.
Phoenix Contact PT4HESILED245X20 Fuse Terminal Block Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 13.6 g
- Custom tariff number: 85369085
- Country of origin: Poland
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry
- Fuse: G / 5 x 20
- Fuse type: Glass
- Rated surge voltage: 4 kV
- Pollution degree: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: max. 1.6 W
- LED voltage range: 12 V AC/DC ... 30 V AC/DC
- LED current range: 0.31 mA ... 0.95 mA
- Connection in acc. with standard: IEC 60947-7-3
- Maximum load current: 6.3 A
- Nominal current IN: 6.3 A
- Nominal voltage UN: 24 V
- Open side panel: ja
- Width: 6.2 mm
- Length: 56 mm
- Height NS 35/7,5: 62.5 mm
- Height NS 35/15: 70 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Connection method: Push-in connection
- Minimum stripping length: 10 mm
- Maximum stripping length: 12 mm
- Internal cylindrical gage: A4
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000897
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
