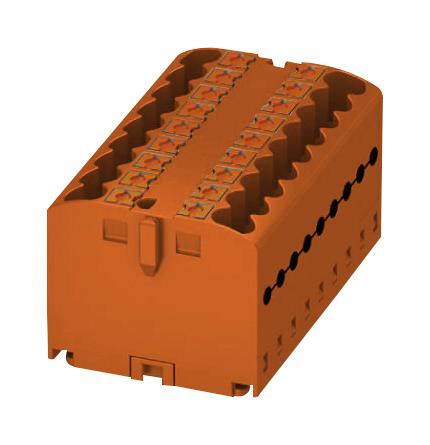

Phoenix Contact PTFIX12X25OG Industrial Terminal Block
The distribution block PTFIX 12X2,5 OG is a reliable, compact terminal connector designed for industrial wiring applications. Made with durable PA insulation material, it supports a rated voltage of 500 V and a maximum load current of 24 A. Featuring a push-in connection method, the block simplifies conductor attachment, reducing installation time. Its orange color enhances wiring clarity, and it can be snapped onto DIN rails, mounted directly or adhered, saving space. The device complies with fire and safety standards, offering robust performance in demanding environments for automation, control panels, and industrial circuits.
Phoenix Contact PTFIX12X25OG Industrial Terminal Block Specifications:
- Insulating Material: PA (Polyamide)
- Flammability Rating: UL 94 V-0
- Rated Surge Voltage: 6kV
- Maximum Power Dissipation: 0.77 W (per connection)
- Maximum Load Current: 24 A
- Nominal Voltage: 500 V
- Number of Connections: 12
- Cross Section: 0.14 mm² - 4 mm²
- Conductor Range: AWG 26 - 12
- Width: 31.2 mm
- Length: 28.2 mm
- Height: 21.2 mm
- Connection Method: Push-in
- Environmental Compliance: China RoHS, UL Recognized, cUL Recognized
- Fire Protection: DIN EN 45545-2 R22, R23, R24, R26 HL1-HL3
- Standards: IEC 60998-2-2
- Stripping Length: 8-10 mm
- Temperature Range: -60°C to +130°C
- Degree of Pollution: 3
- Flammability Rating: UL 94 V-0
Buy the Phoenix Contact PTFIX12X25OG – Reliable Terminal Block for Industrial Applications
Get the Phoenix Contact PTFIX 12X2.5 OG terminal block online today for seamless installation in control panels and automation systems. Featuring push-in connection technology, it allows quick conductor attachment without tools, saving time and reducing errors. Its compact design supports 12 connections within a space-saving width of 31.2 mm, and the high-quality PA insulation ensures durability and fire safety compliance. Perfect for industrial automation, machine wiring, and control cabinet applications, this terminal block offers space-efficient, reliable performance for demanding environments.
Order your Phoenix Contact PTFIX12X25 OG terminal block today and ensure your industrial wiring is fast, safe, and space-efficient with reliable push-in technology.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX12X25OG?
You can click on the BUY or RFQ button to purchase PTFIX12X25OG from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX12X25OG?
You can download the PTFIX12X25OG datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX12X25OG?
Phoenix Contact
