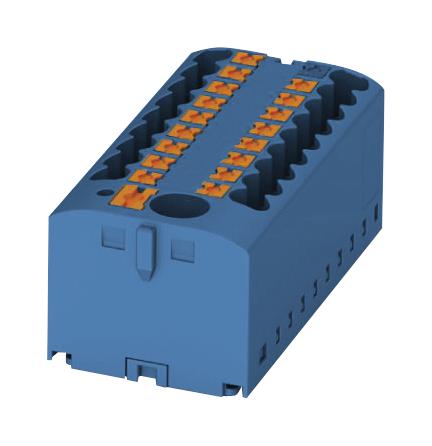

Phoenix Contact PTFIX612X25BU Distribution Block
The distribution block PTFIX 6/12X2,5 BU is a versatile terminal connector designed for efficient wiring in control and automation systems. Featuring push-in connection technology, it allows tool-free conductor insertion, saving time and ensuring clear wiring. With a nominal voltage of 500 V and current of 24 A, it supports up to 13 connections with a cross section range of 0.14 mm²–4 mm² (AWG 26–12). Its blue insulative housing is made of PA, passing UL 94V-0 flammability tests. Suitable for DIN rail mounting, it facilitates space-saving and flexible wiring arrangements in industrial applications.
Phoenix Contact PTFIX612X25BU Distribution Block Specifications:
- Color: Blue
- Insulating Material: PA (Polyamide), UL 94V-0 flammability rating
- Nominal Voltage: 500 V
- Rated Surge Voltage: 6 kV
- Maximum Power Dissipation: 1.31 W
- Maximum Load Current: 24 A, with conductor cross section up to 4 mm²
- Nominal Current: 24 A
- Number of Connections: 13
- Width: 40.6 mm
- Height: 21.2 mm
- Connection Method: Push-in
- Conductor Cross Section: Solid 0.14 mm²–4 mm², AWG 26–12; Flexible 0.14 mm²–2.5 mm², AWG 26–14
- Stripping Length: 8–10 mm
- Dimensions: Width 40.6 mm, Length 28.2 mm, Height 21.2 mm
- Flammability: UL 94V-0
- Conductor Compatibility: Solid and flexible wires, with or without ferrules
- Standards Compliance: IEC 60998-2-2, UL, cUL, CSA
- Fire Protection: DIN EN 45545-2 R22, R23, R24, R26
Buy the Buy Phoenix Contact Distribution Block PTFIX 6/12X2,5 BU Part Number PTFIX612X25BU Online
Purchase the Phoenix Contact distribution block PTFIX 6/12X2,5 BU online today to streamline your wiring process with fast, tool-free push-in technology. This control terminal block offers 13 reliable connections rated at 500 V and 24 A, ensuring safe and stable power distribution in automation and control panels. Its space-saving DIN rail mounting and UL 94V-0 flammability rating make it ideal for industrial environments. Order now to benefit from quick installation, high-performance, and trusted quality in your control systems.
Order your Phoenix Contact PTFIX 6/12X2,5 BU distribution block today and enhance your wiring efficiency with reliable and easy-to-install terminal solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX612X25BU?
You can click on the BUY or RFQ button to purchase PTFIX612X25BU from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX612X25BU?
You can download the PTFIX612X25BU datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX612X25BU?
Phoenix Contact
