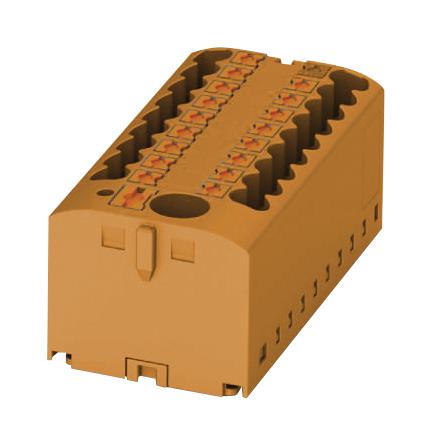

Phoenix Contact PTFIX612X25OG Distribution Block
The distribution block PTFIX 6/12X2,5 OG is a flexible, space-saving terminal component designed for quick, tool-free push-in connections. Featuring 13 connections with a nominal voltage of 500 V and current of 24 A, it's suitable for DIN rail mounting and snap-on adapters. Made from orange PA, it offers high surge voltage resistance of 6 kV, flame retardancy, and robust insulation, ensuring secure and efficient wiring in industrial and rail vehicle applications. It can be bridged with accessories for versatile circuit configurations.
Phoenix Contact PTFIX612X25OG Distribution Block Specifications:
- Color: orange
- Insulating material: PA
- Flammability rating: UL 94 VO
- Rated surge voltage: 6 kV
- Maximum power dissipation: 1.31 W
- Maximum load current: 57 A (10 mm² conductor)
- Nominal current: 24 A
- Nominal voltage: 500 V
- Width: 40.6 mm
- Length: 28.2 mm
- Height: 21.2 mm
- Connection method: Push-in connection
- Conductor cross section: solid 0.14–4 mm², AWG 26–12, flexible 0.14–2.5 mm²
- Stripping length: 8–10 mm
Buy the Buy Phoenix Contact Distribution Block PTFIX 6/12X2,5 OG Online
Order the Phoenix Contact distribution block PTFIX 6/12X2,5 OG online for quick, tool-free wiring solutions in industrial and rail vehicle environments. Featuring 13 push-in connections, it supports 500 V and 24 A capacity, with high surge voltage resistance of 6 kV. Designed from flame-retardant PA, it offers excellent insulation and space-saving installation on DIN rails. Its versatility allows for direct mounting or snap-on adapters, ensuring secure, efficient wiring for complex electrical systems. Purchase today for dependable, fast-install connection technology with lasting durability.
Get Phoenix Contact PTFIX 6/12X2,5 OG today—built for reliable, tool-free wiring with high surge resistance and optimal space efficiency.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX612X25OG?
You can click on the BUY or RFQ button to purchase PTFIX612X25OG from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX612X25OG?
You can download the PTFIX612X25OG datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX612X25OG?
Phoenix Contact
