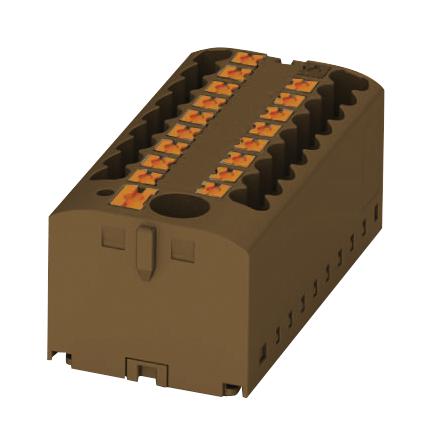

Phoenix Contact PTFIX618X25BN Distribution Block
The distribution block PTFIX 6/18X2,5 BN offers flexible, space-saving wiring solutions with push-in connection technology. Its robust design features 19 connections, allowing for quick, tool-free conductor installation and easy wiring organization. Suitable for DIN rail mounting and adhesive or direct mounting options, it supports a nominal voltage of 500 V and a current of 24 A. Made of insulating PA material with UL 94 V-0 flammability rating, it ensures safety and reliability in industrial and control panel applications. Its compact dimension of 56 mm width and 21.2 mm height makes it ideal for dense electrical layouts.
Phoenix Contact PTFIX618X25BN Distribution Block Specifications:
- Color: Brown
- Material: PA (Polyamide)
- Flammability rating: UL 94 V-0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Nominal voltage: 500 V
- Maximum load current: 24 A
- Number of connections: 19
- Cross section: 0.14 mm² - 4 mm² (solid), 0.14 mm² - 2.5 mm² (flexible)
- Connection method: Push-in connection
- Dimensions: Width 56 mm, Length 28.2 mm, Height 21.2 mm
- Standards: IEC 60998-2-2, UL Recognized, cUL Recognized, CSA
- Temperature Index: Insulation material 130°C; Cold application -60°C
- Fire protection: DIN EN 45545-2 R22, R23, R24, R26
- Environmental compliance: China RoHS
Buy the Buy Phoenix Contact Distribution Block PTFIX 6/18X2,5 BN Online
Enhance your electrical setup with the Phoenix Contact distribution block PTFIX 6/18X2,5 BN, featuring 19 push-in connections, a compact design, and UL recognition. Its durable polyamide material ensures safety, while the easy screwless wiring reduces installation time. Ideal for industrial control panels and dense electrical assemblies, it supports 500 V and 24 A for robust performance. Mountable on DIN rails or adhesive surfaces, this versatile terminal block streamlines wiring, minimizes space usage by up to 50%, and provides long-lasting efficiency for complex automation systems.
Get Phoenix Contact PTFIX 6/18X2,5 BN today—designed for reliable, space-efficient wiring with quick push-in connections and UL safety ratings.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX618X25BN?
You can click on the BUY or RFQ button to purchase PTFIX618X25BN from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX618X25BN?
You can download the PTFIX618X25BN datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX618X25BN?
Phoenix Contact
