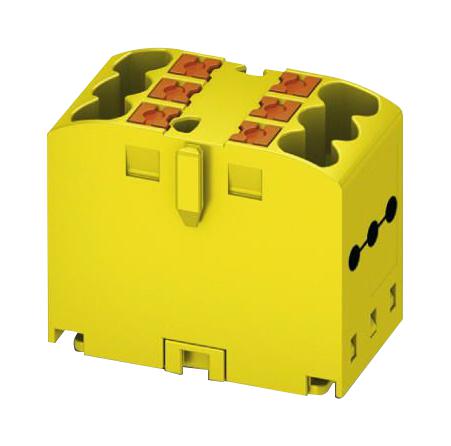

Phoenix Contact PTFIX6X25YE Distribution Block
The distribution block PTFIX 6X2.5 YE is a flexible, high-quality terminal block designed for efficient wiring in automation and electrical systems. It features push-in connection technology for tool-free, time-saving conductor insertion, with 6 connections capable of handling a maximum current of 24 A and voltage of 500 V. Mountable on DIN rails, the block is ideal for space-saving, clear wiring, and versatile use in industrial environments, especially in rail vehicle applications, adhering to strict fire and environmental standards.
Phoenix Contact PTFIX6X25YE Distribution Block Specifications:
- Connection method: Push-in connection
- Number of connections: 6
- Maximum load current: 24 A
- Nominal voltage: 500 V
- Nominal current: 24 A
- Conductor cross section: 0.14 mm² - 4 mm²
- Conductor AWG: 26 - 12
- Width: 15.6 mm
- Height: 21.2 mm
- Color: Yellow
- Mounting type: For snapping onto a DIN rail
- Insulating material: PA
- Flammability rating: UL 94V-0
- Maximum power dissipation: 0.77 W
- Rated surge voltage: 6 kV
- Temperature index of insulation: 130°C
- Fire protection standards: DIN EN 45545-2 R22 HL1-HL3
- Compliance: UL Recognized, cUL, CSA
Buy the Phoenix Contact Series PTFIX Distribution: 6X2.5 YE
Order the Phoenix Contact distribution block PTFIX 6X2.5 YE online today to experience quick, tool-free wiring with push-in connections. This 6-port terminal block features a robust design suitable for demanding industrial applications, including rail vehicles, with maximum current handling of 24 A and voltage of 500 V. Its space-saving DIN rail mounting ensures efficient use of panel space, while its compliance with fire and environmental standards guarantees safety and reliability. Perfect for professionals seeking fast, secure, and maintenance-friendly wiring solutions in automation systems.
Get Phoenix Contact PTFIX 6X2.5 YE today—built for precision and long-lasting durability in industrial wiring solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact PTFIX6X25YE?
You can click on the BUY or RFQ button to purchase PTFIX6X25YE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part PTFIX6X25YE?
You can download the PTFIX6X25YE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of PTFIX6X25YE?
Phoenix Contact
