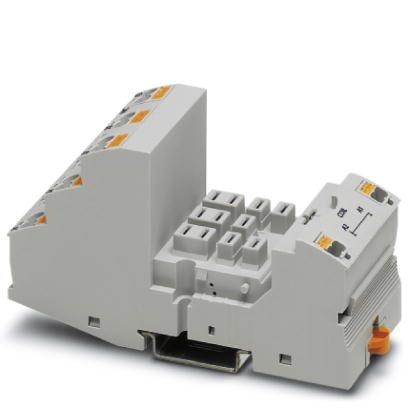

Phoenix Contact RIF4BPT3X21 Relay Socket with Push-in
The PHOENIX CONTACT RIF-4-BPT/3X21 relay socket provides a reliable and efficient platform for mounting and connecting high-power relays. Featuring a push-in connection, it simplifies wiring and reduces installation time. The socket is designed to accommodate relays with 2 or 3 PDTs or 3 N/O contacts and offers plug-in options for input/suppressor modules. Its compatibility with NS 35/7.5 rails ensures easy integration into industrial control panels and automation systems. This socket is ideal for applications requiring robust and flexible relay control.
Phoenix Contact RIF4BPT3X21 Relay Socket with Push-in Specifications:
- Width: 43 mm
- Height: 111 mm
- Depth with retaining bracket: 90 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Protective circuit: depending on the selected input/suppressor modules
- Connection name (input side): Input side
- Connection method (input side): Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 1.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 1.5 mm²
- Conductor cross section AWG (input side): 26 ... 16
- Connection name (output side): Output side
- Connection method (output side): Push-in connection
- Stripping length (output side): 10 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Nominal voltage UN: 440 V AC / 250 V DC
- Nominal current IN: max. 16 A
- Color: gray
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371603
- eCl@ss 5.1: 27371603
- eCl@ss 6.0: 27371603
- eCl@ss 7.0: 27371603
- eCl@ss 8.0: 27371603
- ETIM 3.0: EC001456
- ETIM 4.0: EC001456
- ETIM 5.0: EC001456
- UNSPSC 6.01: 30211917
- UNSPSC 7.0901: 39121516
- UNSPSC 11: 39121516
- UNSPSC 12.01: 39121516
- UNSPSC 13.2: 39121516
