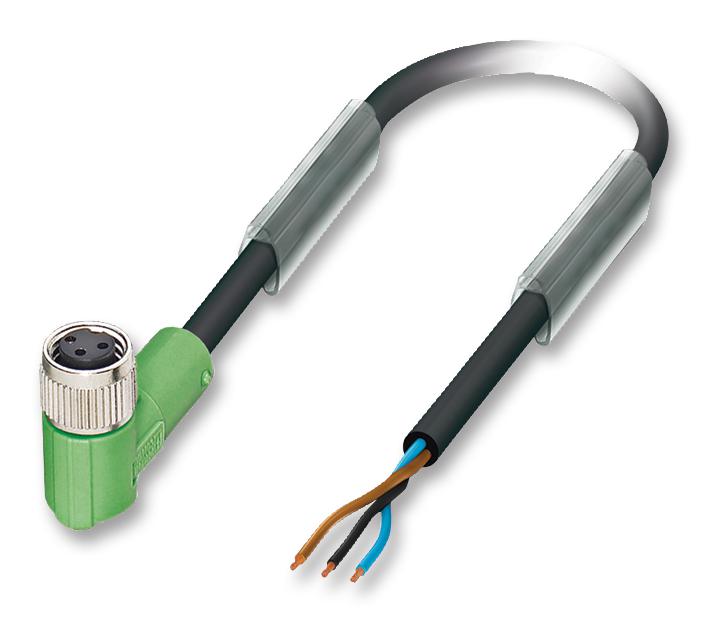

Phoenix Contact SAC3P50PURM8FR Sensor/Actuator Cable
The Sensor/Actuator cable SAC-3P-5,0-PUR/M 8FR is a flexible, halogen-free PUR cable designed for industrial sensor and actuator connections. It features a 3-position configuration with black-gray RAL 7021 external sheath, 5-meter length, and M8 angled socket connectors. The cable offers excellent resistance to oils, chemicals, and UV exposure, meeting DIN UL-Style 20549 standards. Rated for -25°C to 90°C ambient temperature and IP65/IP67/IP68 protection classes, it supports 4A current at 60V, ensuring reliable signal and power transmission in challenging environments.
Phoenix Contact SAC3P50PURM8FR Sensor/Actuator Cable Specifications:
- Cable length: 5 meters
- External sheath material: PUR, halogen-free, black-gray RAL 7021
- Number of positions: 3
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Contact resistance: <5mΩ
- Insulation resistance: >100 MΩ
- Operating temperature: -25°C to 90°C (plug/socket), -40°C to 80°C (fixed/flexible)
- Ingress Protection: IP65/IP67/IP68
- Outer cable diameter: 4.4 mm ± 0.15 mm
- Bending radius fixed: 22 mm, movable: 44 mm
- Bending cycles: 4,000,000
- Conductor material: Bare copper litz wires
- Conductor cross section: 3 x 0.25 mm²
- Wire color: brown, blue, black
- Outer sheath color: black-gray RAL 7021
- Compliance: UL UL-Style 20549, halogen-free according to DIN VDE 0472 part 815
- Resistant to oils, chemicals, UV, microbe, acids, and saltwater
Buy the Phoenix Contact Series SAC: Sensor/Actuator Cable 5m Black-Gray RAL 7021 1669631
Order the Phoenix Contact SAC-3P-5,0-PUR/M 8FR sensor and actuator cable online today. This durable, halogen-free cable is optimized for industrial automation, offering high resistance to oils, chemicals, UV, and microbe exposure. With a length of 5 meters and equipped with M8 angled connectors, it ensures secure and reliable connections in harsh environments. Perfect for industrial sensor and actuator applications, it meets all relevant standards for safety, flexibility, and environmental resistance, ensuring seamless integration into your automation system.
Buy Phoenix Contact SAC-3P-5,0-PUR/M 8FR now and experience reliable, flame-resistant signal transmission in industrial automation environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3P50PURM8FR?
You can click on the BUY or RFQ button to purchase SAC3P50PURM8FR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3P50PURM8FR?
You can download the SAC3P50PURM8FR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3P50PURM8FR?
Phoenix Contact
