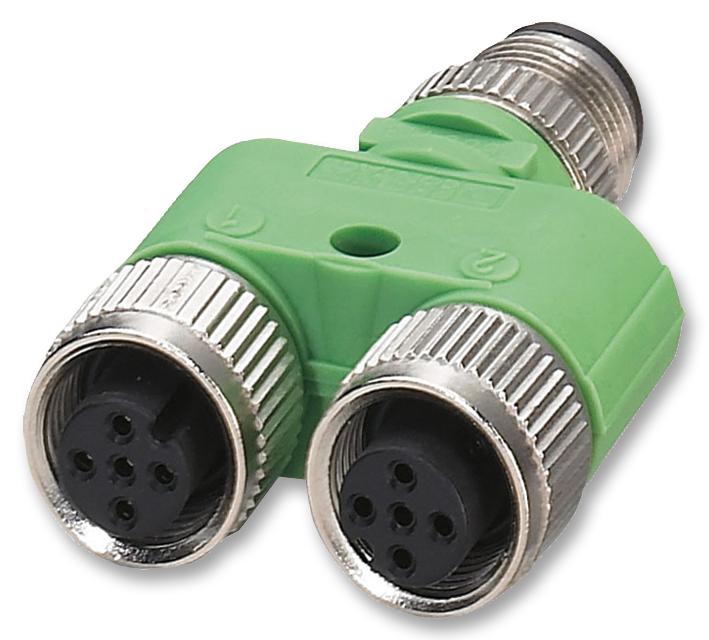

Phoenix Contact SAC3PM12Y2XM12FSPE Industrial Y Distributor Connector
The Y distributor SAC-3P-M12Y/2XM12FS PE is a 4-position industrial connector designed for scalable, reliable connections in automation systems. It features IP65/67 protection, A-coded M12 connector standards, and is suitable for molded or unshielded connectors with connector diameters from 0.14 mm to 0.34 mm. With a center distance of 18 mm, rated current of 4A, and voltage of 60V, it ensures durable, vibration-resistant, and environment-optimized performance for demanding industrial environments. Made of high-quality materials, it complies with IEC 61076-2-101 standards and UL 94 HB flammability rating.
Phoenix Contact SAC3PM12Y2XM12FSPE Industrial Y Distributor Connector Specifications:
- Center distance: 18 mm
- Ambient temperature: -25°C to 90°C
- Degree of protection: IP65/IP67
- Rated current: 4A at 40°C
- Rated voltage: 60V
- Number of positions: 4
- Infiuence resistance: > 100 MA
- Materials: CuZn contact, Ni/Au surface, TPU GF contact carrier, NBR sealing
- Compliance: IEC 61076-2-101, UL 94 HB
- Standards: M12 connector
- Overvoltage category: not specified
- Sealing: NBR
- Environmental compliance: China RoHS
- Approvals: UL Listed, EAC
Buy the Buy Phoenix Contact M12 Y Distributor Part Number SAC3PM12Y2XM12FSPE Online
Enhance your automation setup with the Phoenix Contact M12 Y distributor. Designed for durability and reliability, it features IP65/67 protection, supports a rated current of 4A and a voltage of 60V, and is compliant with IEC 61076-2-101 standards. Its compact design with an 18 mm center distance makes it suitable for a variety of industrial applications, ensuring secure, vibration-resistant, and long-lasting connections in challenging environments. Perfect for machinery and automation systems requiring dependable power and data connections.
Buy Phoenix Contact SAC3PM12Y2XM12FSPE now and experience unmatched reliability and versatility in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3PM12Y2XM12FSPE?
You can click on the BUY or RFQ button to purchase SAC3PM12Y2XM12FSPE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3PM12Y2XM12FSPE?
You can download the SAC3PM12Y2XM12FSPE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3PM12Y2XM12FSPE?
Phoenix Contact
