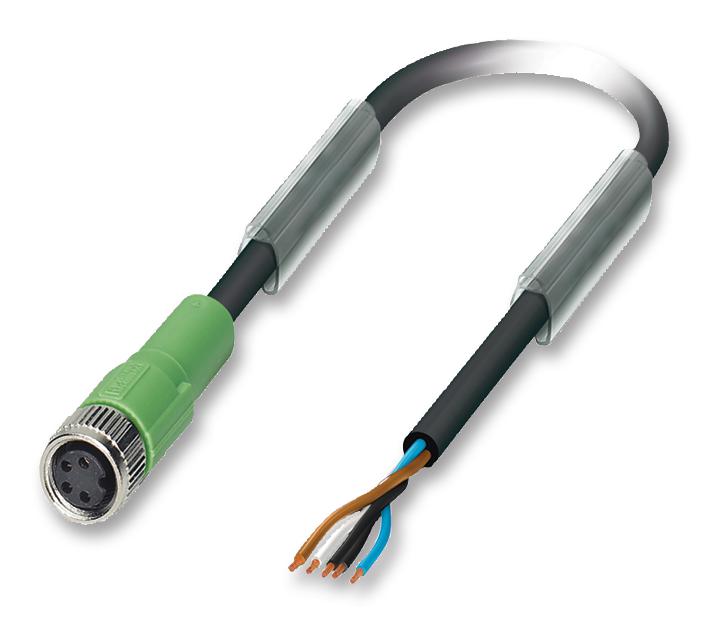

Phoenix Contact SAC4P30PURM8FS Sensor/Actuator Cable
This sensor/actuator cable features a 4-position M8 connector with a 3-meter halogen-free PUR black-gray sheath, ideal for industrial automation. It is designed for reliable, safe connections in control systems, offering robust construction, high flexibility, and resistance to oil, chemicals, and UV exposure. The cable is rated for operational temperatures from -40°C to 80°C, with a rated voltage of 30V and a rated current of 4A. Its precise wiring and durable materials ensure long-lasting performance in demanding environments, conforming to standards like IEC 61076-2-104 and UL UL-Style 20549.
Phoenix Contact SAC4P30PURM8FS Sensor/Actuator Cable Specifications:
- Cable Length: 3m
- Conductor Cross Section: 4x 0.25 mm²
- Outer Sheath Material: PUR halogen-free black, RAL 7021
- Operating Temperature: -40°C to 80°C (fixed), -25°C to 80°C (flexible)
- Rated Voltage: 30V
- Rated Current: 4A at 40°C
- Contact Resistance: <5mΩ
- Insulation Resistance: >100 MΩ
- Connector Type: M8, 4-pin, straight socket
- Protection Class: IP65/IP67/IP68
- Material of Contact Surface: Ni/Au plating
- Bending Radius: 22mm (fixed), 44mm (movable)
- Bending Cycles: 4,000,000
- Resistance: Oil, acids, alkalis, solvents resistant
- UL/CSA Listed, GOST Certified
Buy the Buy PhoenixContact Sensor/Actuator Cable Part Number SAC4P30PURM8FS Online
Purchase the PhoenixContact sensor/actuator cable online for secure, flexible, and reliable connections in automation systems. This 4-pin M8 connector cable features a 3-meter length with halogen-free PUR insulation, making it ideal for demanding industrial environments. It provides excellent protection against chemicals, oil, and UV exposure, with an IP67 rating suitable for outdoor and harsh conditions. The cable’s high flexibility, resistance to microbe and hydrolysis, and long-lasting performance ensure seamless automation processes. Order now for quick delivery and peace of mind.
Get PhoenixContact SAC4P30PURM8FS today—engineered for reliable industrial sensor and actuator connections with durable halogen-free PUR coating and IP67 protection.
