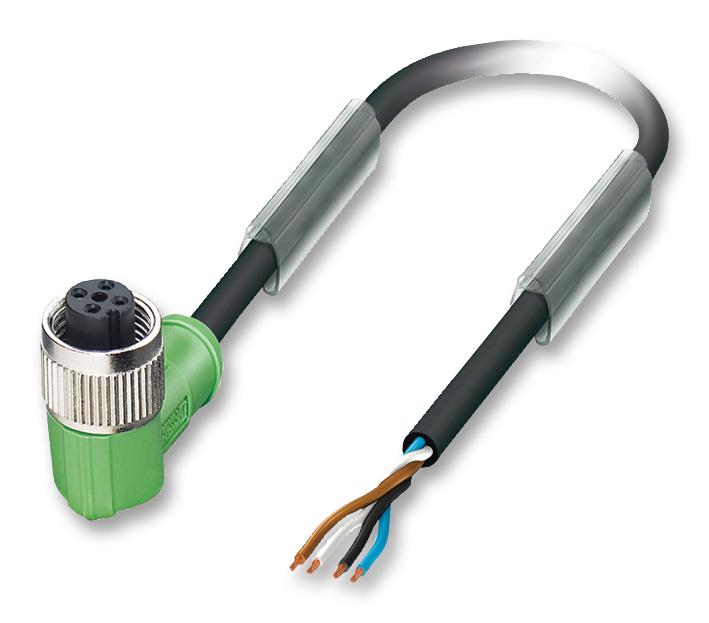

Phoenix Contact SAC4P50PURM12FR Sensor Cable
The sensor/actuator cable features a 4-position, A-coded M12 connector, 5 meters in length, made of halogen-free PUR material. Designed for industrial automation, it offers IP65, IP67, and IP68 protection ratings, and supports a rated current of 4A at 250V. The cable withstands temperature ranges from -40°C to 80°C (fixed/movable installation) and resists oil, acids, and UV exposure. Its flexible, flame-resistant construction meets UL and DIN standards, ensuring reliability in harsh environments, making it ideal for sensor and actuator connections in automation and control systems.
Phoenix Contact SAC4P50PURM12FR Sensor Cable Specifications:
- Number of positions: 4
- Cable length: 5 meters
- Rated current: 4A at 250V
- Temperature range: -40°C to 80°C
- Protection ratings: IP65, IP67, IP68
- Material: Halogen-free PUR, flexible, flame-resistant
- Conductor cross section: 4x 0.34 mm² (AWG 22)
- Outer diameter: 4.7 mm
- Minimum bending radius: fixed installation 5xD, flexible 10xD
- Conductor resistance: < 58 Ω/km
- Insulation resistance: 21 GΩ·km
- Test voltage: 3000 V
- Standards: IEC 61076-2-101, UL, VDE
Buy the Phoenix Contact SAC4P50PURM12FR – Reliable Sensor/Actuator Cable for Industrial Applications
Purchase the Phoenix Contact sensor actuator cable online today for reliable, durable, and flexible connections in industrial automation. This 4-pin M12 cable features a 5-meter length, halogen-free PUR insulation, and high protection ratings of IP65, IP67, and IP68. Designed to operate in extreme temperatures from -40°C to 80°C and withstand oil, UV, acids, and solvents, it has a rated current of 4A at 250V, supporting robust and safe sensor and actuator connections in challenging environments. Easy to install and UL certified.
Get Phoenix Contact SAC4P50PURM12FR today—built for precision, flexibility, and long-lasting durability in demanding automation environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC4P50PURM12FR?
You can click on the BUY or RFQ button to purchase SAC4P50PURM12FR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC4P50PURM12FR?
You can download the SAC4P50PURM12FR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC4P50PURM12FR?
Phoenix Contact
