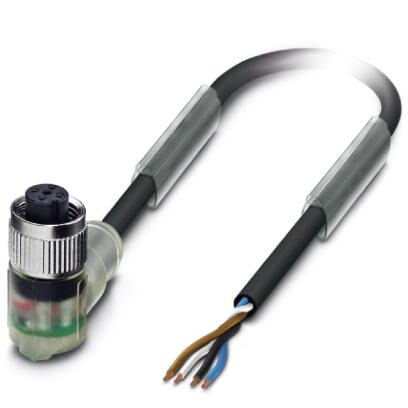

Phoenix Contact SAC4P50PURM12FR3L 4-Position PUR Cable
The PHOENIX CONTACT SAC-4P- 5 0-PUR/M12FR-3L is a robust sensor/actuator cable designed for reliable data transmission and power delivery in industrial automation applications. It combines a 4-position design with a durable, halogen-free PUR cable and an angled M12 connector, providing a secure and space-saving connection. The integrated LEDs offer visual diagnostics, simplifying troubleshooting and maintenance. This cable is ideal for applications requiring flexibility, chemical resistance, and a wide operating temperature range, contributing to increased machine availability and operational efficiency.
Phoenix Contact SAC4P50PURM12FR3L 4-Position PUR Cable Specifications:
- Length of cable: 5 m
- Stripping length of the free conductor end: 50 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 24 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: 3 LEDs
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y11Y-HF
- UL AWM style: 20549 / 10493 (80°C/300 V)
- Conductor cross section: 4x 0.34 mm²
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm
- Thickness, insulation: ≥ 0.21 mm
- Wire colors: brown, white, blue, black
- Overall twist: 4 wires, twisted
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 0.8 mm
- External cable diameter D: 4.7 mm ±0.15 mm
- Smallest bending radius, fixed installation: 23.5 mm
- Smallest bending radius, movable installation: 47 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Number of bending cycles: 4000000
- Bending radius: 47 mm
- Minimum bending radius, drag chain applications: 10 x D
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 10 m/s²
- Cable weight: 30 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Insulation resistance cable: ≥ 1 GΩ*km
- Conductor resistance: ≤ 58 Ω/km
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
- Flame resistance: according to UL 758/1581 (horizontal)
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
