Phoenix Contact SAC4P50PURM12FS Sensor/Actuator Cable

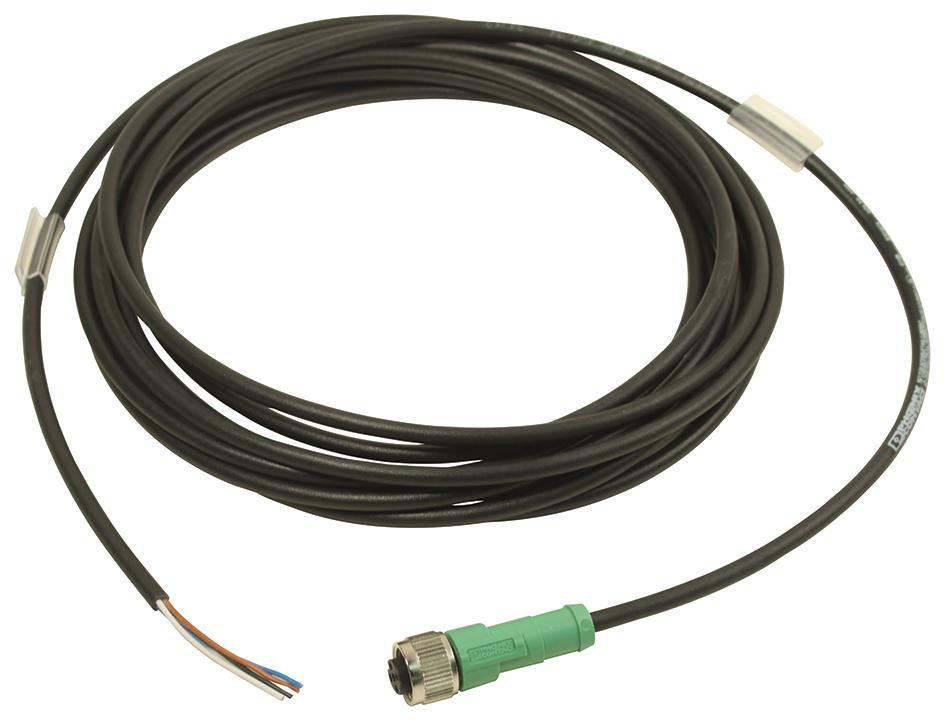

The SAC-4P-5.0-PUR/M12FS is a 5-meter sensor/actuator cable with a 4-position M12 straight connector, designed for industrial sensing and instrumentation applications. It features a halogen-free, durable PUR sheath with glass-filled TPU contact carriers, and a black-grey RAL 7021 external jacket. The cable utilizes copper-tin (CuSn) contacts, nickel-plated zinc die-cast knurls for secure connection, and a self-extinguishing TPU grip body. It is resistant to oil, flame, hydrolysis, and microbial attack, and is 100% electrically tested for safety. Rated for 4A at 40°C and 250V, with insulation resistance exceeding 100 MΩ.
Phoenix Contact SAC4P50PURM12FS Sensor/Actuator Cable Specifications:
- Cable length: 5 meters
- Number of positions: 4
- Rated voltage: 250V
- Rated current: 4A at 40°C
- Insulation resistance: >100 MΩ
- External sheath: PUR, halogen-free, black-gray RAL 7021
- Conductor: Copper-tin, 4x 0.34 mm²
- Core diameter including insulation: 1.27 mm
- Insulation thickness: 1.0 mm
- Contact material: Copper-tin (CuSn)
- Contact surface: Nickel-plated
- Material of grip body: TPU, self-extinguishing
- Protection class: IP65/IP68/IP69K
- Temperature range: -25°C to 90°C (plug/socket)
- Bending radius (fixed): 23.5 mm
- Bending radius (movable): 47 mm
- Bending cycles: 4,000,000
- Ambient temperature (operation): -25°C to 80°C
- Certification: cULus Listed, GOST, compliant with DIN EN 6081 1-2-1
- Resistance: Oil-resistant, hydrolysis resistant, UV partially resistant
Buy the Phoenix Contact SAC4P50PURM12FS – Reliable Sensor/Actuator Cable for Industrial Applications
Purchase the Phoenix Contact SAC4P50PURM12FS sensor/actuator cable online today and experience reliable performance in industrial environments. This 5-meter, 4-position M12 connector cable features a halogen-free PUR sheath and high oil, flame, and microbial resistance. Ideal for automation, sensing, and instrumentation applications, it ensures secure connections with nickel-plated contacts and a robust, self-extinguishing TPU grip body. Certified for safety standards, it withstands harsh conditions with IP69K protection, offering durability and dependable operation for your critical industrial projects.
Order your Phoenix Contact SAC4P50PURM12FS sensor/actuator cable today and enhance your industrial sensing and automation projects with dependable quality.
Frequently Asked Questions
Where can I buy Phoenix Contact SAC4P50PURM12FS?
You can click on the BUY or RFQ button to purchase SAC4P50PURM12FS from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC4P50PURM12FS?
You can download the SAC4P50PURM12FS datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC4P50PURM12FS?
Phoenix Contact
