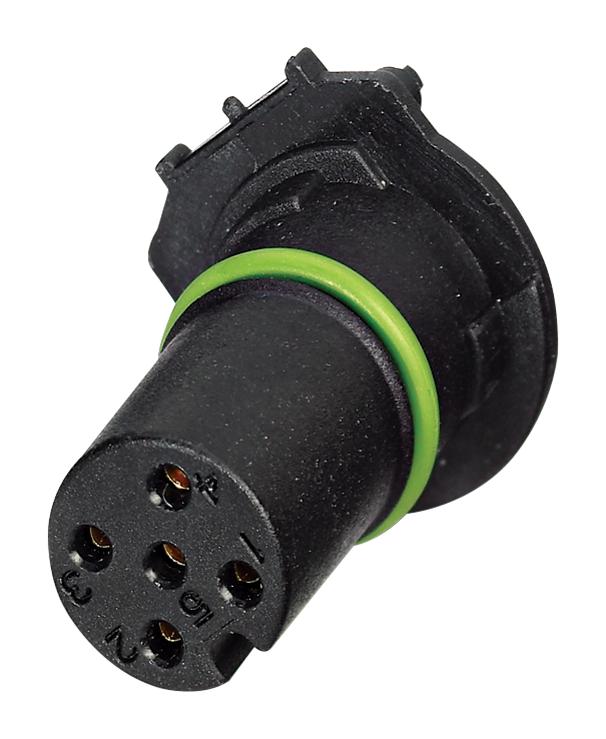

Phoenix Contact SACCCIM12FS5CONL180THR Sensor/Actuator Flush Connector
The sensor/actuator flush-type socket offers a 5-position, A-coded connection with straight THR solder connection, designed for reliable device integration. It features IP67 protection when properly connected, making it suitable for industrial environments with harsh conditions. The connector supports over 100 insertion/withdrawal cycles, rated current of 4A, and voltage of 60V. Constructed with durable CuZn contacts with gold surfaces and PPA contact carriers, it ensures excellent electrical performance and long-term stability. Its robust design meets IEC 61076-2-101 standards, ideal for automation systems requiring secure, vibration-resistant connections.
Phoenix Contact SACCCIM12FS5CONL180THR Sensor/Actuator Flush Connector Specifications:
- Number of positions: 5
- Coding: A-coded
- Connection method: Straight THR solder connection
- Rated current at 40°C: 4A
- Rated voltage: 60V
- Rated surge voltage: 1.5kV
- Insulation resistance: > 100 MA
- Degree of protection: IP67 (properly plugged and locked)
- Ambient temperature (operation): -25 °C to 85 °C (cable, flexible), -40 °C to 85 °C (cable, fixed)
- Material: Contact carrier - PPA, Contact material - CuZn, Contact surface - Au
- Flammability rating: UL 94 V0
- Standard: IEC 61076-2-101
- Durability: > 100 insertion/withdrawal cycles
- Torque: 3.Nm to 4 Nm
- Environmental compliance: UL, cUL Recognized, EAC
- Mounting type: PCB mounting
- Protection class: IP67 when properly engaged
Buy the Phoenix Contact Series ED Sensor/Actuator 5-Position Socket: SACCCIM12FS5CONL180THR
Order the Phoenix Contact SACCCIM12FS5CONL180THR flush-type sensor and actuator connector online today. This 5-position, A-coded socket provides IP67 protection when properly engaged, supporting over 100 insertion cycles for durability. Designed with robust CuZn contacts with gold surfaces and a PPA contact carrier, it ensures excellent electrical conductivity. Its straight THR solder connection makes device integration straightforward and secure, ideal for automation and industrial applications requiring reliable, vibration-resistant connections. Purchase now for fast delivery and superior quality.
Buy Phoenix Contact SACCCIM12FS5CONL180THR now and experience unmatched reliability and performance for industrial sensor and actuator connections.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCCIM12FS5CONL180THR?
You can click on the BUY or RFQ button to purchase SACCCIM12FS5CONL180THR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCCIM12FS5CONL180THR?
You can download the SACCCIM12FS5CONL180THR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCCIM12FS5CONL180THR?
Phoenix Contact
